GATE TITAN V2 NGRS ETU Expert Set - Rear Wiring

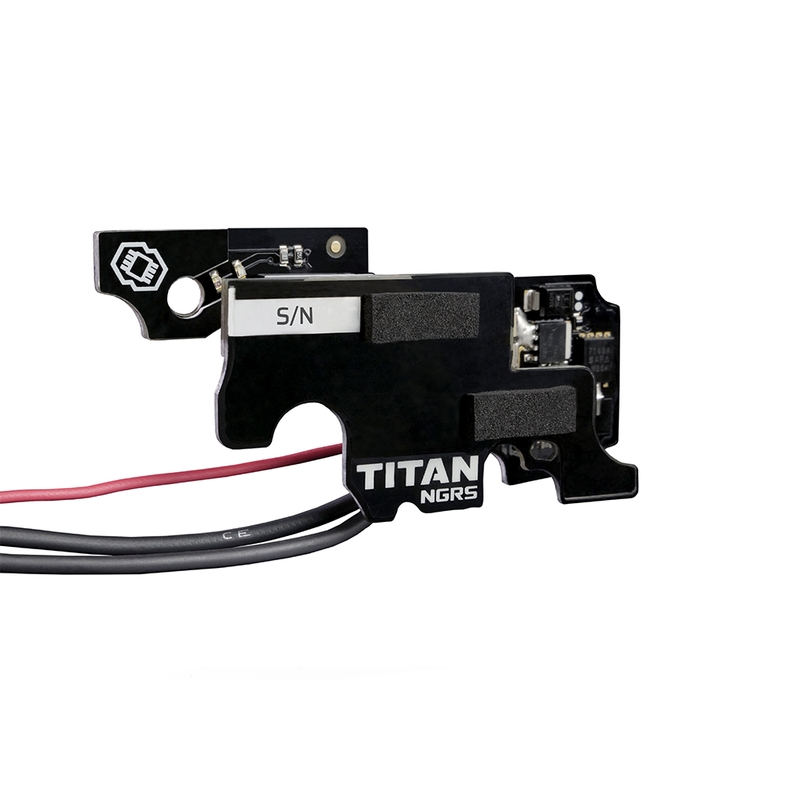

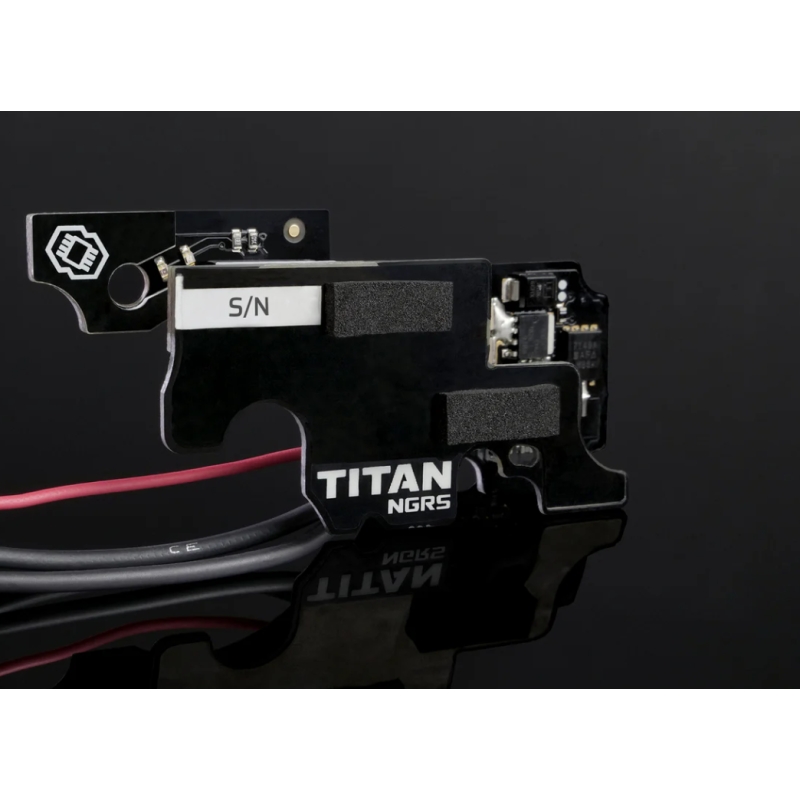

TITAN V2 NGRS Expert Set – GATE Control Unit for Tokyo Marui Next Gen

Unlock the full potential of your Tokyo Marui NGRS replica with the most advanced fire control system on the market – the TITAN V2 NGRS. This rear-wired version delivers extremely fast trigger response, precise sensitivity tuning, and advanced replica protection. At its core is a 3rd generation optical trigger sensor offering up to 460 levels of adjustment. Hair Trigger functionality provides up to 50 sensitivity levels in the first millimeter of trigger pull, giving players unmatched control. All settings can be configured using the GATE Control Station App on mobile, PC, or smartwatch. This unit gives you a fully customizable airsoft rifle with features like active brake, pre-cocking, two-stage trigger, sniper delay, magazine detection, and battery protection. Optimized for Tokyo Marui Next-Gen models such as M4, HK416, SCAR-L/H, and HK417.

Notice

Not compatible with AK NGRS and G36 NGRS variants, and cannot be installed in standard V2 gearboxes.

Key Features

• Top-tier switching technology:
  3rd generation proximity sensor – up to 460 trigger sensitivity levels.


• Hair Trigger:
  50 levels within the first millimeter of pull for ultra-fast response.


• Full GCS App compatibility:
  Configure all settings from your phone, computer, or smartwatch.


• Professional features:
  Two-stage trigger, pre-cocking, active brake, sniper delay, battery protection, and more.


• Easy firmware updates:
  Update via the internet to always access the latest features.


• Compatibility:
  Tokyo Marui Next Gen (M4, SCAR, HK416, HK417).

Technical Specifications

• Wiring: Rear (to stock)
• Connector: T-Dean
• Compatible gearboxes: Tokyo Marui NGRS / SOPMOD (Retro Arms, Bullgear)
• Input voltage: 3.75–17 V
• Current consumption: 33 mA
• Low power mode: 320 µA
• Dimensions: 67.5 × 32.4 × 13.5 mm
• Weight: 28.2 g
• Operating temperature: -15 °C to +50 °C
• Relative humidity: ≤ 80 %

Package Includes

• TITAN V2 NGRS control unit
• Rear wiring harness
• USB-Link adapter
• Installation accessories
• User manual
