VO 30mm One-Piece 20 MOA Cant RIS Mount, 1.25" (35 mm)

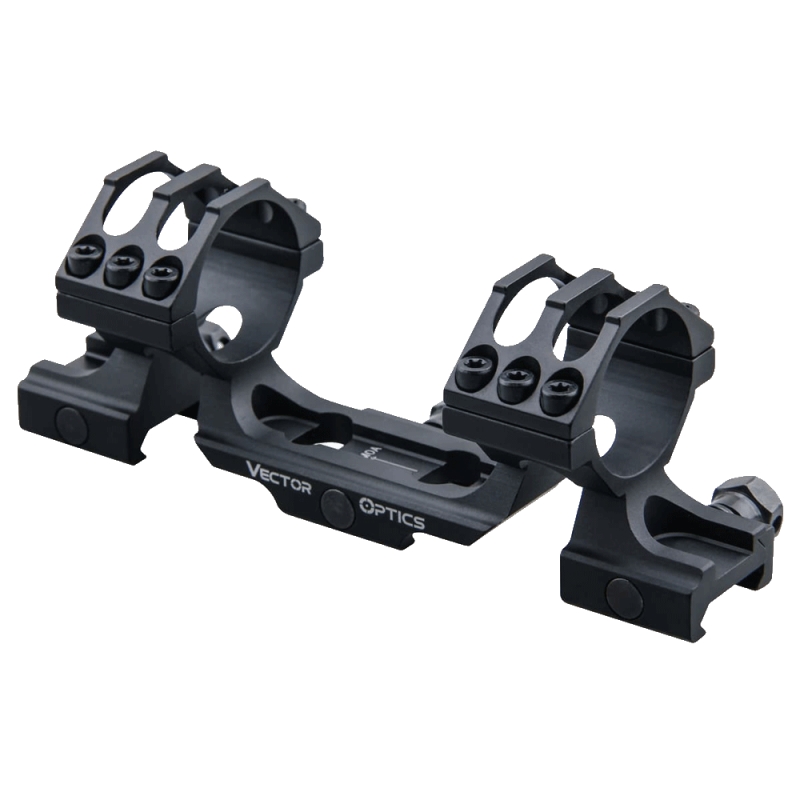

Vector Optics 30 mm One-Piece 20 MOA RIS Mount

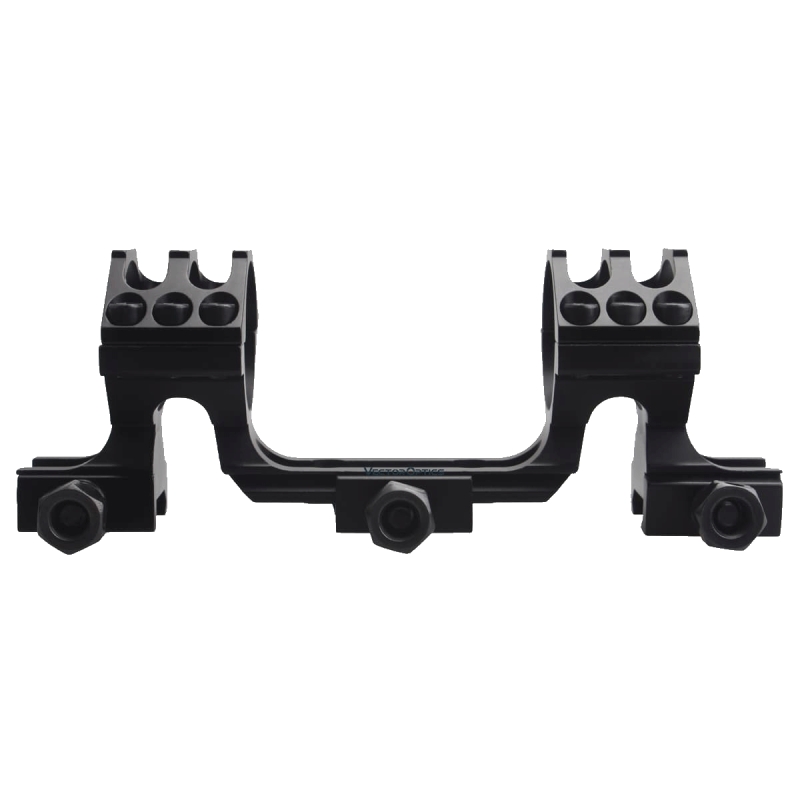

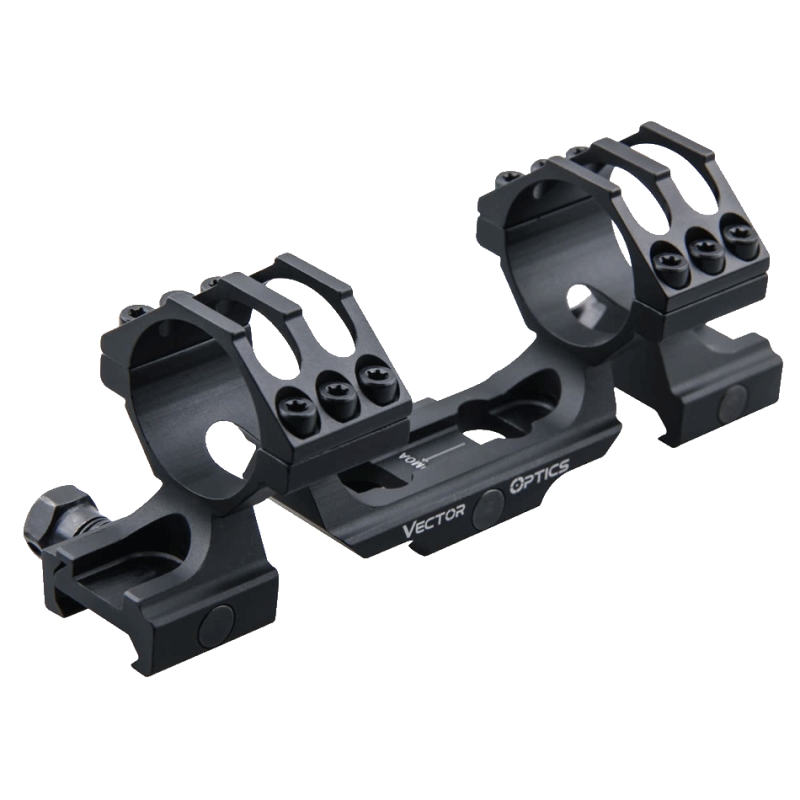

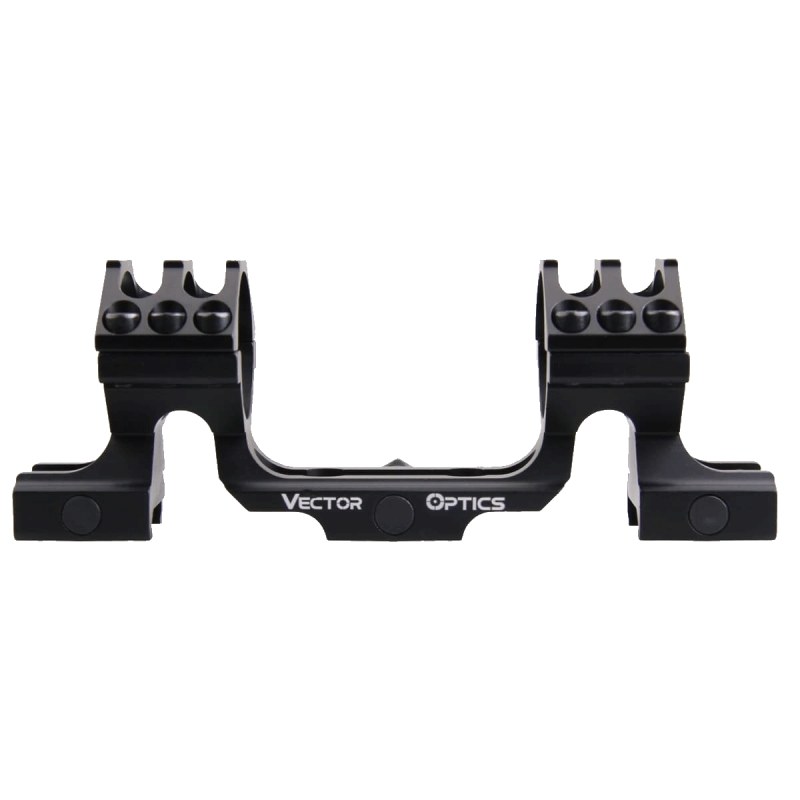

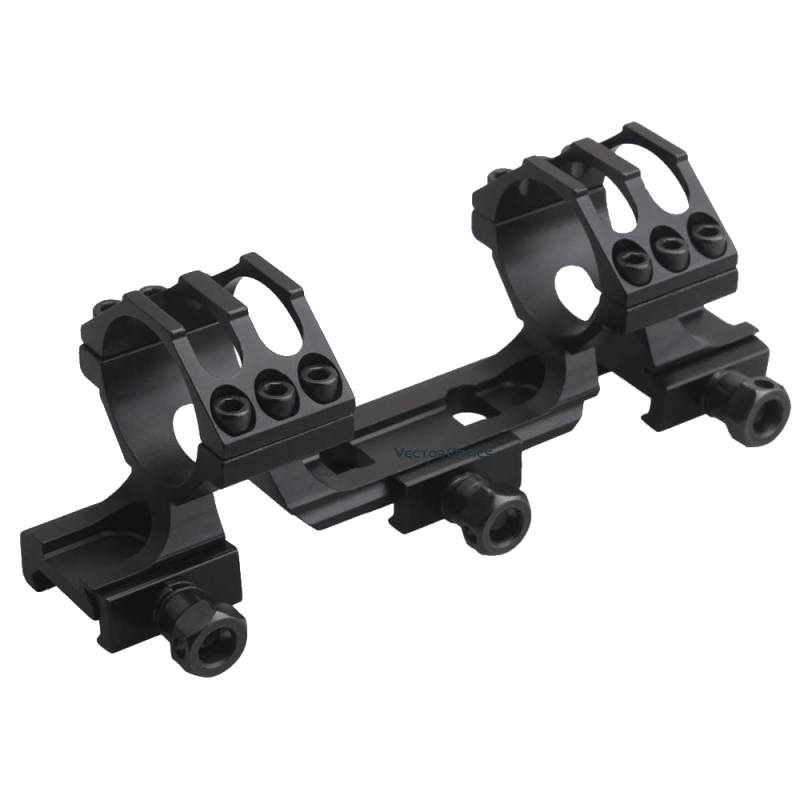

This professional product description was prepared by the expert team at ANAREUS.cz. All rights to this unique content are reserved by anareus.cz.The Vector Optics one-piece RIS mount is designed for rifle scopes with a 30 mm tube. Its integrated 20 MOA cant makes it especially suitable for long-range shooting. The angled mount provides additional usable elevation adjustment, allowing the scope to retain more elevation travel for distant targets. The manufacturer recommends it for shooting beyond 500 yards (approximately 457 m). The 35 mm (1.25") optical center height, measured from the base to the ring center, provides a versatile scope position above the rifle. Each ring secures the scope with 6 screws, while the mount is attached to a RIS rail using 3 robust cross bolts. The skeletonized 6063-T6 aluminum alloy body significantly reduces weight while maintaining the strength of a one-piece design, resulting in a total weight of just 150 g. The mount measures 146 mm in overall length with a 57 mm spacing between the rings.

Key Features of the Vector Optics 20 MOA Mount

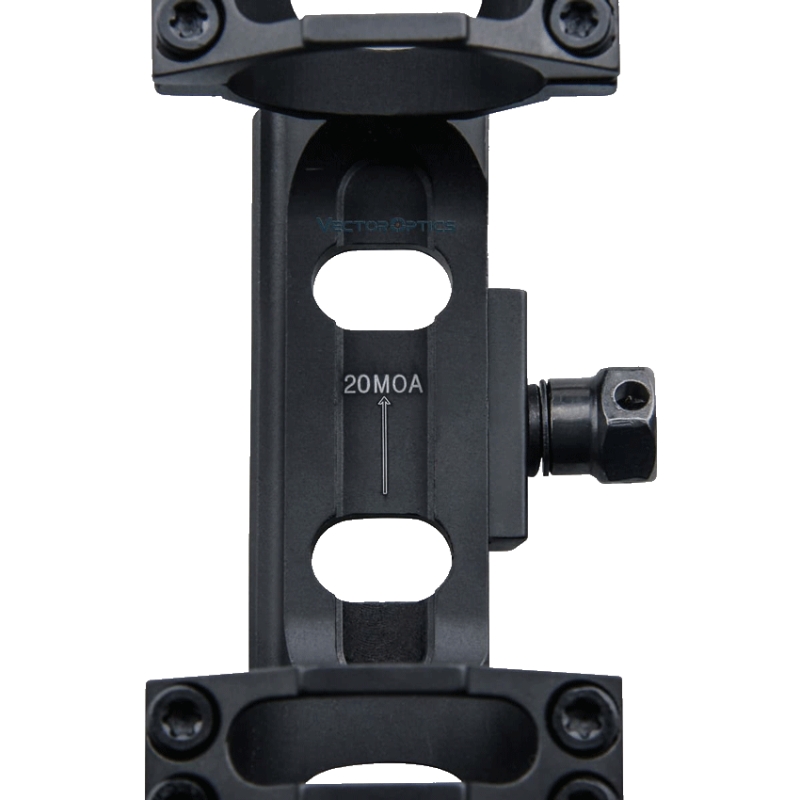

20 MOA Cant

The integrated 20 MOA cant increases the available elevation adjustment range for long-range shooting.

For 30 mm Tubes

Precision-machined rings are designed for 30 mm scope tubes, with each ring secured by 6 mounting screws.

35 mm Optical Center Height

The scope centerline sits 35 mm (1.25") above the mount base, providing a versatile optic height.

Lightweight Skeletonized Design

The skeletonized 6063-T6 aluminum body reduces weight to only 150 g while maintaining excellent rigidity.

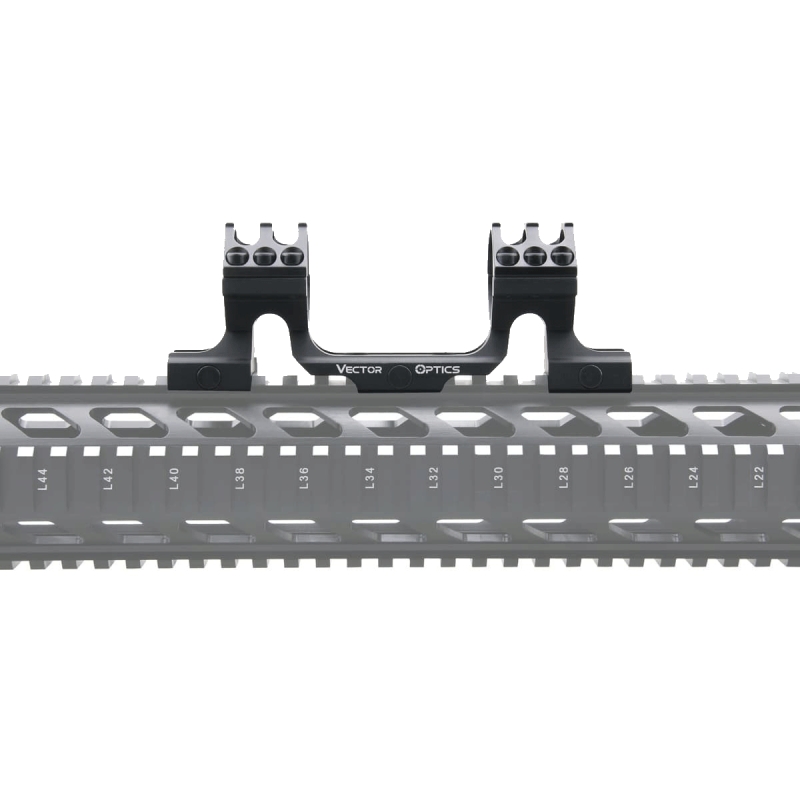

Secure RIS Attachment

Three robust cross bolts provide a solid connection to any standard RIS rail.

Vector Optics 30 mm 20 MOA Mount

Lightweight one-piece 20 MOA scope mount for 30 mm rifle scopes.

Technical Specifications

• Model: SCTM-39
• Tube Diameter: 30 mm
• Cant: 20 MOA
• Optical Center Height: 35 mm (1.25") from the base to the ring center
• Overall Length: 146 mm (5.7")
• Body Length: 137 mm (5.4")
• Ring Spacing: 57 mm (2.2")
• Material: 6063-T6 aluminum
• Construction: Skeletonized
• Weight: 150 g
• Mount: RIS

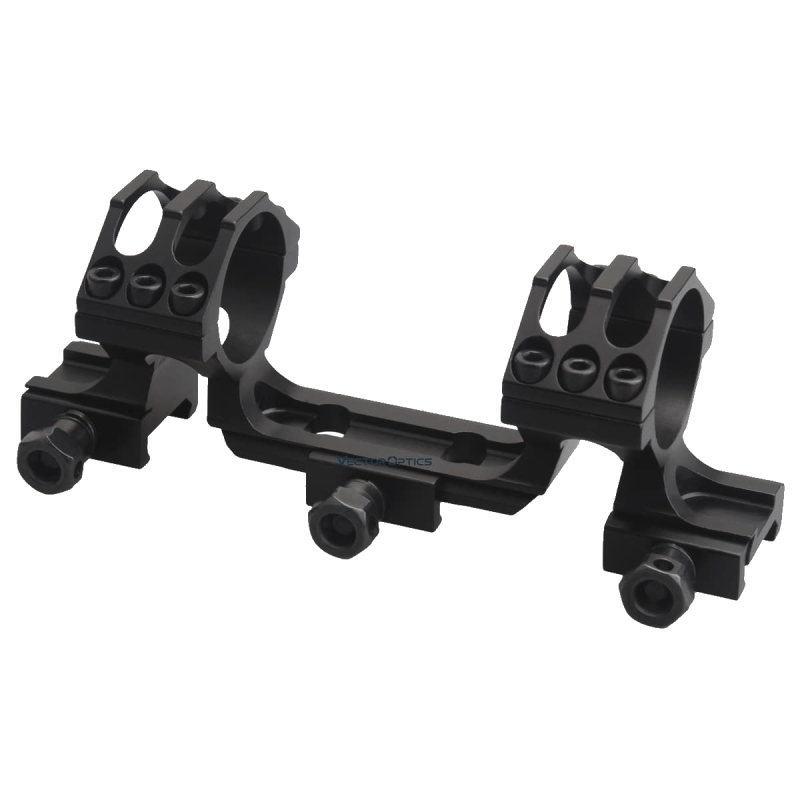

• Rail Attachment: 3 cross bolts
• Ring Attachment: 6 screws per ring
• Finish: Matte black

Package Contents

• Vector Optics 30 mm One-Piece 20 MOA RIS Mount

Frequently Asked Questions (FAQ)

What is a 20 MOA cant used for?

A 20 MOA cant tilts the scope relative to the rifle, providing additional usable elevation adjustment. This is particularly beneficial for long-range shooting where greater bullet drop compensation is required.

What scope is this mount designed for?

The mount is designed for 30 mm tube rifle scopes. Each ring uses 6 screws to ensure a secure and evenly distributed clamping force.

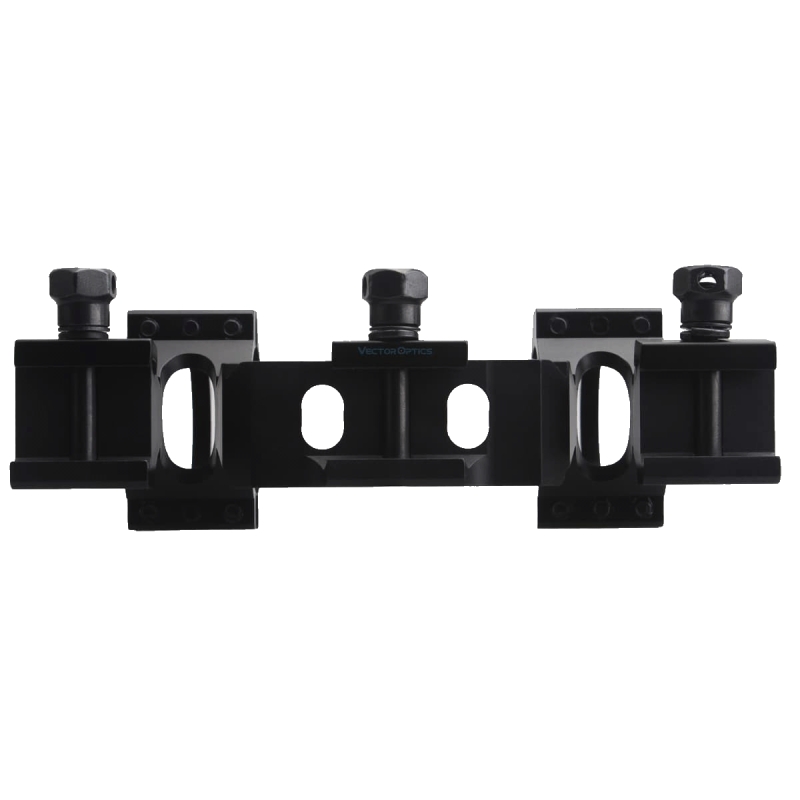

Why does the mount feature skeletonized cutouts?

The skeletonized design removes unnecessary material to reduce overall weight while maintaining the strength of the one-piece construction, resulting in a total weight of only 150 g.
