VO 25.4mm One-Piece Cantilever RIS Mount 1.5" (38 mm) – Medium

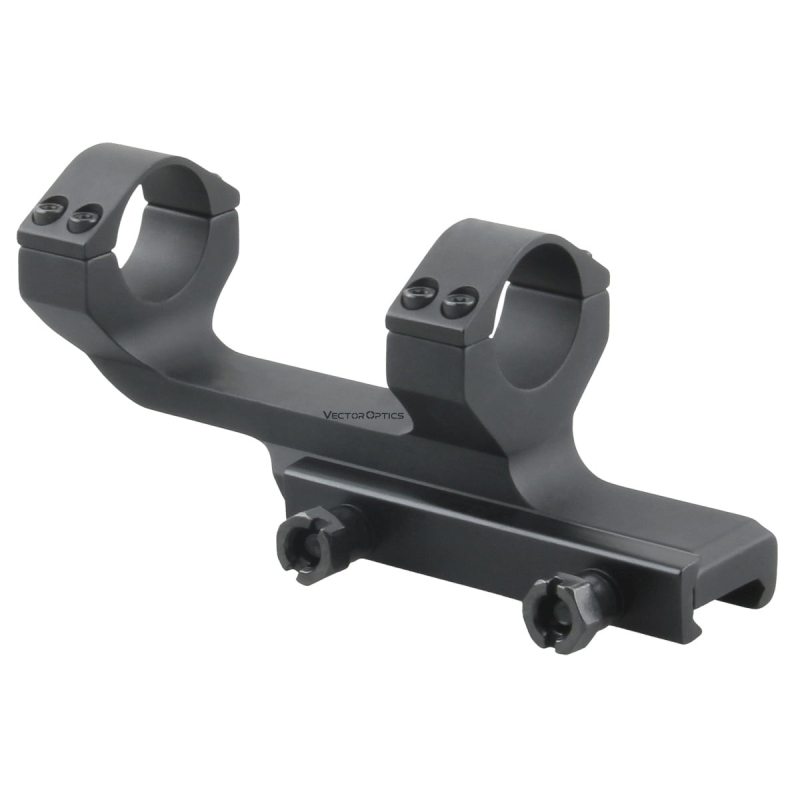

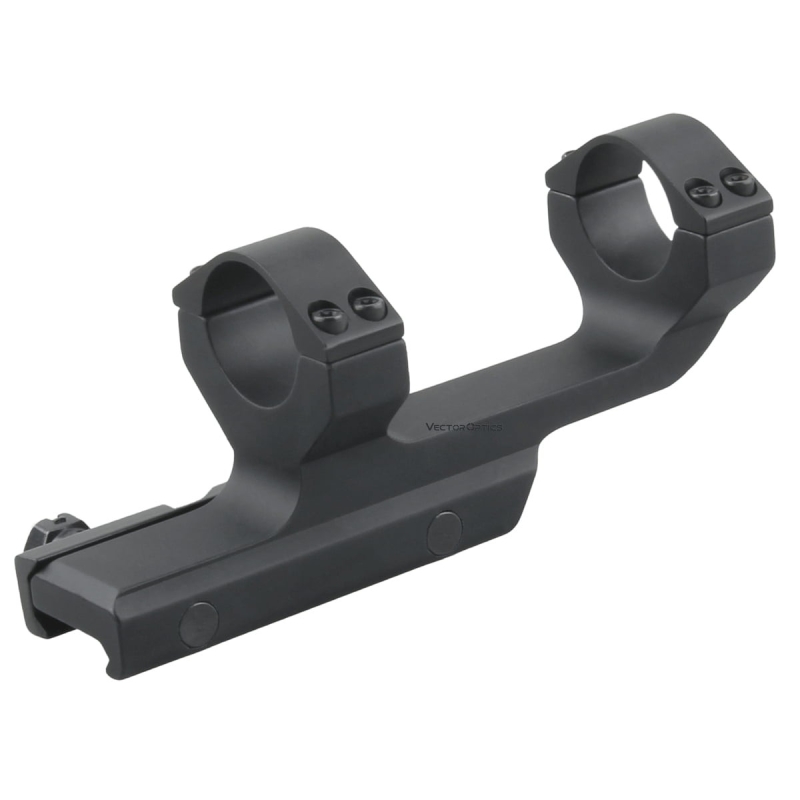

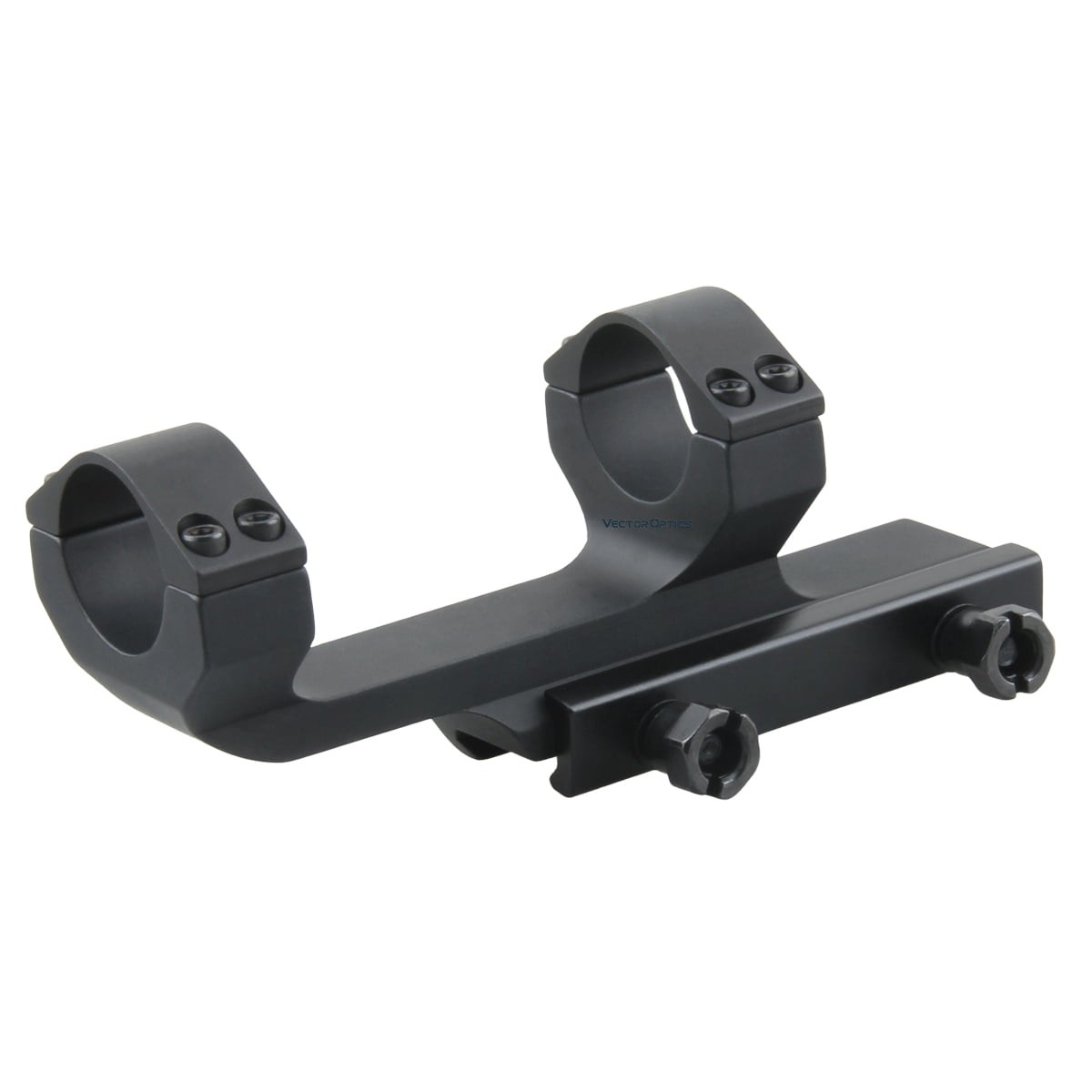

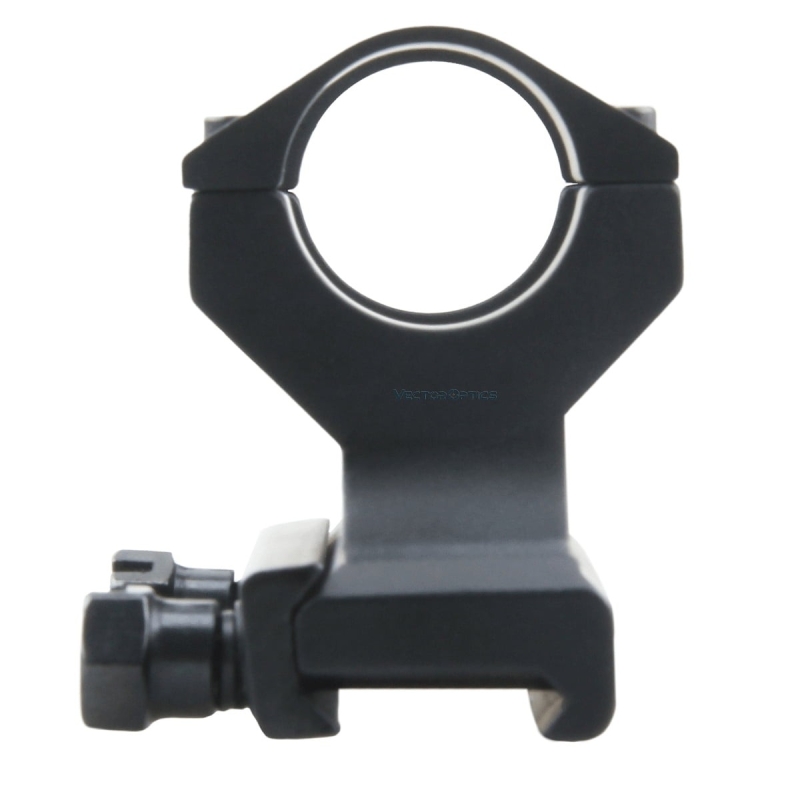

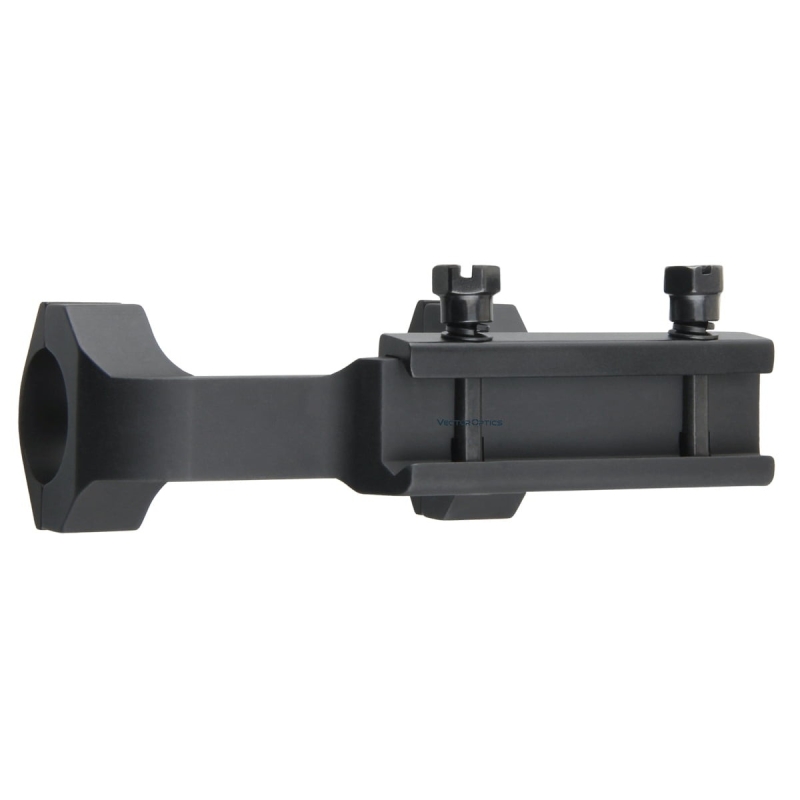

Vector Optics Cantilever 25.4 mm One-Piece RIS Mount

This professional product description was prepared by the expert team at ANAREUS.cz. All rights to this unique content are reserved by anareus.cz.The Vector Optics Cantilever is a precision one-piece mount designed for rifle scopes with a 25.4 mm tube diameter. Its medium-height design provides an optical center height of 38 mm (1.5") from the base to the center of the rings, offering ample clearance for scopes with objective lenses up to 60 mm. The entire mount is precision CNC-machined from 6063-T6 aluminum alloy and finished in matte black. Each ring secures the scope tube using 4 screws, distributing clamping force evenly while keeping the optic firmly in place. The mount attaches to a standard RIS / Picatinny rail using two heavy-duty cross bolts. The 135 mm one-piece body creates a rigid platform for your optic, while the 0 MOA cant makes it suitable for general-purpose use without additional elevation.

Key Features of the Vector Optics Cantilever Mount

For 25.4 mm Scope Tubes

Precision-machined rings designed specifically for 25.4 mm (1") scope tubes.

Medium Height 38 mm

The 38 mm (1.5") center height provides sufficient clearance for scopes with objective lenses up to 60 mm.

6063-T6 CNC Aluminum

The one-piece body made from CNC-machined 6063-T6 aluminum provides excellent strength, precision, and a stable platform for your scope.

4 Screws Per Ring

Each scope ring uses 4 screws to ensure even clamping pressure and secure scope retention.

Secure RIS Attachment

Two heavy-duty cross bolts provide a solid and reliable attachment to any RIS / Picatinny rail.

Vector Optics Cantilever Mount 1.5"

Medium-height Cantilever mount from Vector Optics for rifle scopes with a 25.4 mm tube.

Technical Specifications

• Model: SCTM-63
• Tube Diameter: 25.4 mm (1")
• Center Height: 38 mm (1.5") from the base to the ring center
• Length: 135 mm (5.3")
• Material: 6063-T6 aluminum
• Manufacturing: CNC-machined
• Finish: Matte black
• Mount: RIS / Picatinny
• Rail Attachment: 2 cross bolts
• Ring Fastening: 4 screws per ring
• Maximum Objective Diameter: 60 mm
• Cant: 0 MOA
• Weight: 195 g

Package Contents

• Vector Optics Cantilever 25.4 mm One-Piece RIS Mount (1.5")

Frequently Asked Questions (FAQ)

What scope tube diameter is this mount designed for?

This mount is designed exclusively for rifle scopes with a 25.4 mm (1") tube diameter. Please verify your scope's tube size before ordering.

What does the 38 mm mount height mean?

The 38 mm (1.5") measurement refers to the distance from the base of the mount to the centerline of the scope tube. This medium-height design also provides sufficient clearance for scopes with larger objective lenses.

Does this mount have a 20 or 30 MOA cant?

No. This Cantilever mount features 0 MOA cant, meaning the scope is mounted parallel to the RIS rail without additional elevation. Canted mounts are intended for very long-range shooting and offer no practical benefit in airsoft.
