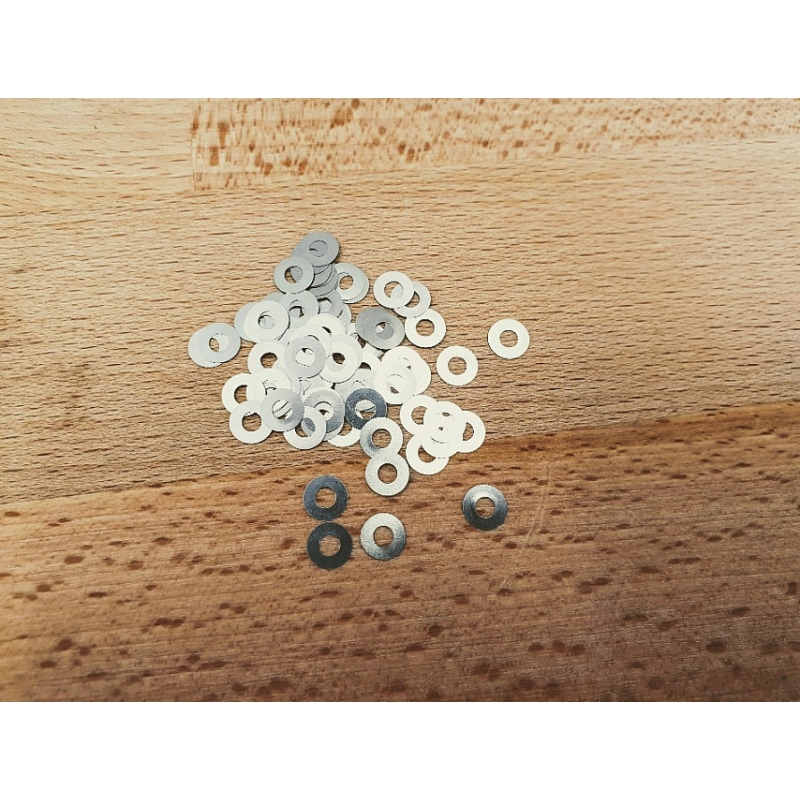

RetroArms INOX Shim Set 0,1 / 0,2 / 0,5 mm (60 pcs) – Ø 3 mm

RetroArms INOX Shims 0.1 / 0.2 / 0.5 mm – Ø 3 mm

This expert product description was prepared by the ANAREUS.cz expert team. All rights to this unique content are tied to the anareus.cz domain.RetroArms INOX shim set is designed for precise shimming of gears with standard 3mm axles in AEG gearboxes. Shimming is used to set the axial play of individual gears in the bushings or bearings and adjust their correct relative position. A properly shimmed gear train can provide smoother and quieter operation, reduced unnecessary friction and lower wear of the gears and bushings or bearings. The set includes three practical thicknesses, 0.1 / 0.2 / 0.5 mm, allowing the shims to be combined to gradually achieve the required clearance for the bevel, spur and sector gear. The shims are made from stainless steel and each one has its thickness laser-marked, making identification much easier during gearbox assembly and repeated disassembly. When shimming, we recommend noting the thicknesses used on the upper and lower side of each gear. The set is intended exclusively for gears with Ø3 mm axles; reinforced gears with 4mm axles require corresponding Ø4 mm shims.

Key Features

Technical Specifications

• Type: Gear shims
• Material: Stainless steel (INOX)
• Inner Diameter: 3 mm
• Thicknesses: 0.1 / 0.2 / 0.5 mm
• Thickness Marking: Laser-marked
• Compatibility: AEG gears with 3mm axles

Package Contents

• 20× INOX shim Ø 3 mm – 0.1 mm
• 20× INOX shim Ø 3 mm – 0.2 mm
• 20× INOX shim Ø 3 mm – 0.5 mm

Frequently Asked Questions (FAQ)

What Is Gear Shimming in a Gearbox Used For?

Shimming is used to adjust the axial play and relative position of the gears. Correctly adjusted gears should not move excessively from side to side, while still remaining free enough to rotate smoothly without excessive friction.

Why Does the Set Include Three Different Thicknesses?

The 0.1 / 0.2 / 0.5 mm thicknesses can be combined according to the available space around each gear. Thicker shims are useful for removing larger amounts of play, while thinner ones allow finer final adjustment.

Are These Shims Suitable for RetroArms PandoRA Gears With 4mm Axles?

No. This set has a 3 mm inner diameter and is intended for gears with 3mm axles. PandoRA versions with 4mm axles require corresponding Ø4 mm shims.

How Can I Identify the Thickness of Each Shim?

RetroArms has added laser markings showing the thickness of each shim. Even so, when shimming it is practical to note the number and thickness of the shims used on the upper and lower side of each gear.
