AirsoftParts TECAFORM 2013 Piston Head

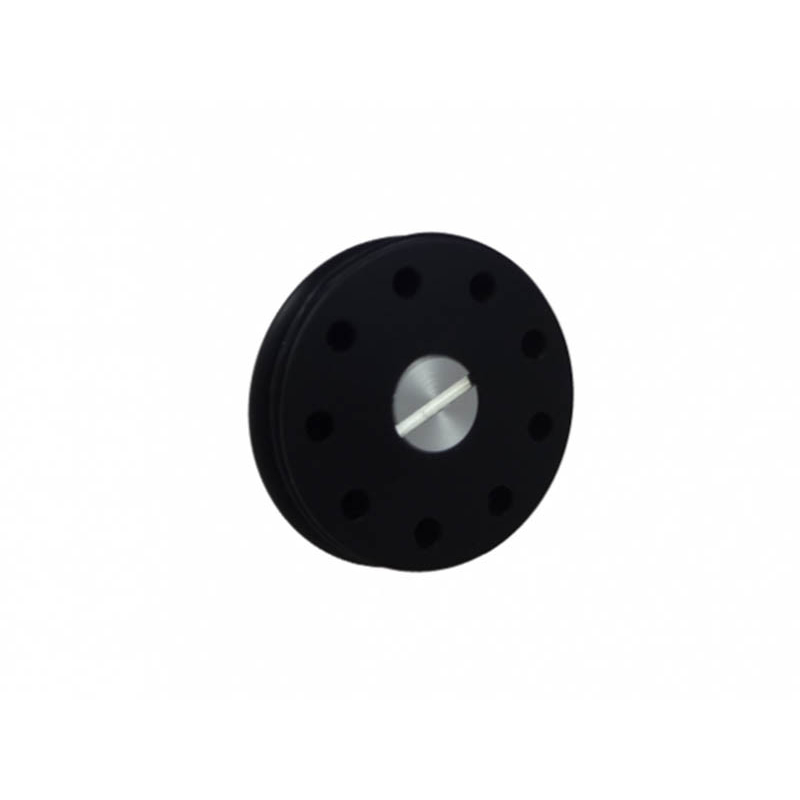

AirsoftParts TECAFORM 2013 piston head is a lightweight CNC-machined piston head made from TECAFORM (POM), weighing 8.7 g and designed for V2, V3 and V7 gearboxes with springs up to M150. It features 9 holes for pressure-assisted sealing, a guide O-ring for centering inside the cylinder, an axial ball bearing and a through-locking nut for secure mounting.
Another product variants
On stock
On stock
25+ years of proven equipment and accessories.
Accessories
1,23 € In StockAirsoftParts DURAL / TECAFORM 2013 Spare Piston Head O-ringASPARTS002
AirsoftParts replacement seal set for DURAL 2013 / TECAFORM 2013 piston heads is designed to restore proper sealing of the piston assembly. It includes a sealing O-ring and a centering ring. The manufacturer recommends replacement after approximately 10,000 BBs fired or once a year, as operation gradually deforms the O-ring and reduces its sealing...
1,23 €In Stock
16,87 € In StockAirsoftParts Silent Cylinder HeadASPARTS014
AirsoftParts silent cylinder head is a CNC-machined head made from EN AW 6012 T6 duralumin for V2 and V3 gearboxes. The integrated sealing collar with a large 80 ShA impact pad helps seal the air system while cushioning piston impacts. The electroless nickel-plated finish provides high hardness, wear resistance and low friction.
16,87 €In Stock
16,87 € In StockAirsoftParts Cylinder Head CLASSICASPARTS017
AirsoftParts CLASSIC cylinder head is a CNC-machined head made from EN AW 6012 T6 duralumin for V2 and V3 gearboxes. Two O-rings provide reliable sealing inside the cylinder, while the shaped 70 ShA impact pad cushions piston impacts. The electroless nickel-plated finish provides high hardness, wear resistance and low friction for smooth nozzle movement.
16,87 €In Stock
16,87 € In StockAirsoftParts AEG Ribbed Cylinder – Ported (200–400 mm)ASPARTS021
AirsoftParts ported cylinder is a stainless steel cylinder for AEGs with an inner barrel length of 200–400 mm, such as M4 or MP5. Gen 1.2 features revised dimensions for better compatibility and a smoother inner surface. The cylinder has an inner diameter of 23.95 mm, a ground finish and cooling grooves around the outer circumference.
16,87 €In Stock
2,92 € 5,03 € In Stock-42%AirsoftParts Duralumin NozzleASPARTS039
AirsoftParts duralumin nozzle is a precision CNC-machined AEG air seal component made from durable EN AW 6012 T6 duralumin. An internal O-ring seals the connection between the nozzle and cylinder head, helping to reduce unwanted air leaks. The standard version is available in various lengths and weighs only 0.8–1.3 g depending on the variant.
2,92 € 5,03 €In StockReduced price!
11,21 € In Stock4UANTUM Universal Lubrication Grease Pen SMOOTH - Red4UAD003
4UANTUM SMOOTH universal lubrication pen from 4UAD with red lubricant. Specially developed for AEG, GBB, and HPA airsoft weapons. Suitable for plastic and rubber parts without risk of material degradation. Rotating applicator for easy application and convenient portability. Keep it smooth, keep it shooting – don't let your gears run dry!
11,21 €In Stock- SA Silicone Oil Spray (150 ml)
SPARMS444
Specna Arms silicone oil spray with a volume of 150 ml is a universal maintenance product for airsoft guns. The low-viscosity silicone oil easily reaches O-rings, seals, valves and moving parts, reduces friction and helps protect rubber and plastic components against drying out and ageing.
3,81 €In Stock
AirsoftParts TECAFORM 2013 Piston Head With Guide O-Ring
AirsoftParts TECAFORM 2013 piston head is a CNC-machined component for AEG air seal systems, made from TECAFORM (POM) engineering plastic. Weighing just 8.7 g, it helps keep the moving mass of the piston assembly low, while the manufacturer recommends use with springs up to M150. The front features 9 holes through which air flows beneath the main sealing O-ring during compression. The pressure expands it against the cylinder wall and promotes effective sealing. A second guide O-ring helps center the piston head inside the cylinder and reduces unwanted contact with the cylinder wall. Another important design feature is the locking nut passing through the center of the piston head, which distributes the clamping force over a larger area and reduces the risk of the mounting screw being pulled out of the POM body. The integrated axial ball bearing allows the spring to rotate more freely during compression and reduces torsional stress. The manufacturer states compatibility with V2, V3 and V7 gearboxes. Made in the Czech Republic.
Key Features
Low Weight of 8.7 g
The CNC-machined TECAFORM (POM) construction weighs just 8.7 g, helping to keep the moving mass of the piston assembly low.
Two O-Rings With Different Functions
The main O-ring provides pressure-assisted sealing of the piston inside the cylinder, while the second guide O-ring helps center the piston head and reduces contact with the inner cylinder wall.
9 Holes for Pressure-Assisted Sealing
The 9 front holes direct air beneath the sealing O-ring during compression, expanding it against the cylinder wall and helping to properly seal the piston assembly.
Through-Locking Nut
The nut passing through the center of the piston head distributes the clamping force over a larger area, reducing the risk of the mounting screw being pulled out of the plastic piston head body.
Axial Ball Bearing
The integrated axial ball bearing allows the spring to rotate more freely during compression, reducing twisting and contributing to longer spring life.
Technical Specifications
- Designation: HP-POM-DOUBLE
- Type: Piston head for AEG
- Size: Standard
- Material: TECAFORM (POM)
- Manufacturing: CNC machining
- Maximum Recommended Spring: M150
- Sealing: 1× sealing O-ring + 1× guide O-ring
- Number of Front Holes: 9
- Lightened: No
- Surface Finish: None
- Bearing: Axial ball bearing
- Weight: 8.7 g
- Compatibility: V2, V3 and V7 gearboxes
Frequently Asked Questions (FAQ)
What Is the Guide O-Ring on the Piston Head For?
The guide O-ring helps keep the piston head centered inside the cylinder and reduces unwanted contact with the cylinder wall. The main seal is provided by a separate sealing O-ring.
What Is the Advantage of the Through-Locking Nut?
The locking nut distributes the clamping force of the screw over a larger area of the piston head. This reduces localized stress on the POM body and the risk of the screw being pulled out of the piston head.
What Is the Maximum Spring That Can Be Used With the TECAFORM 2013 Piston Head?
The manufacturer recommends use with springs up to M150. In higher-performance builds, the other mechanically stressed gearbox components must also be appropriately rated.
Which Gearboxes Is the Piston Head Compatible With?
According to the manufacturer, the AirsoftParts TECAFORM 2013 is designed for V2, V3 and V7 gearboxes. During installation, it is advisable to verify the correct operation of the complete piston assembly and its interaction with the cylinder and other components.
| Variants | TECAFORM 2013 |
| Piston head | Plastic |
