AirsoftParts ARES / Delta Armory vz.58 Nozzle Set | ANAREUS View larger
Previous Next

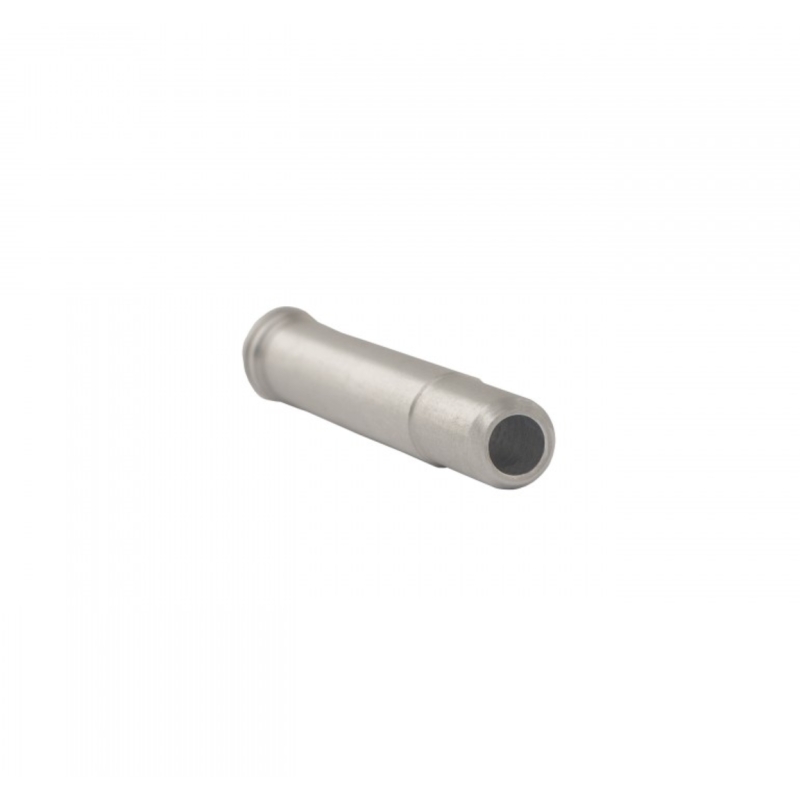

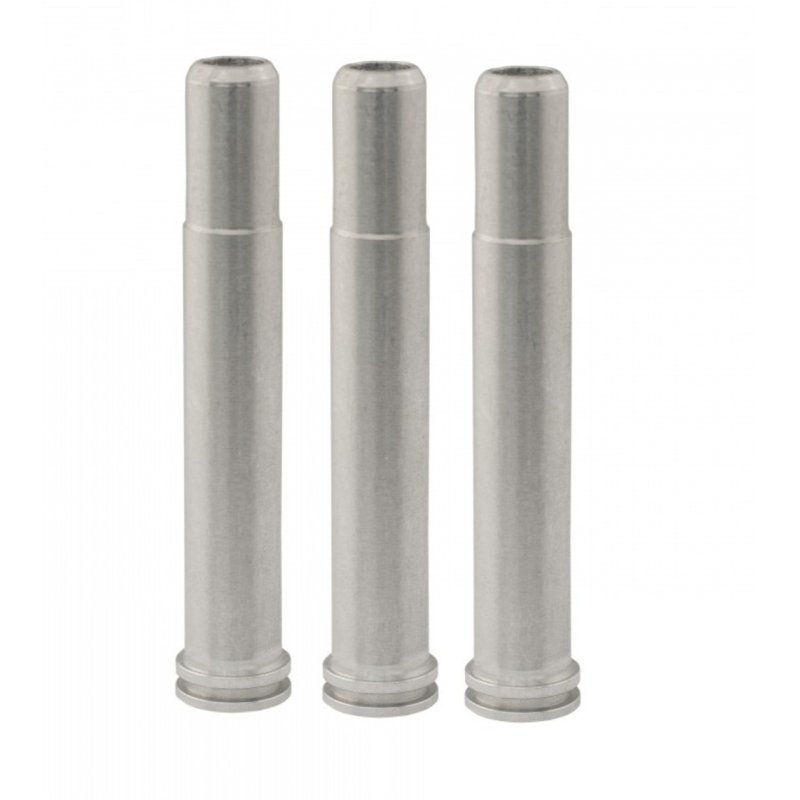

AirsoftParts ARES / Delta Armory vz.58 Nozzle Set

AirsoftParts duralumin nozzle set for ARES / Delta Armory vz.58 in 49.2, 49.4 and 49.6 mm lengths offers three precisely graduated lengths for fine-tuning BB feeding and air seal performance. The nozzles are CNC-machined from EN AW 6012 duralumin, and each features its own sealing O-ring. The 0.2 mm increments allow you to select the length that best matches the specific gun setup.

Another product variants

  • Silver
    On stock

16,92 € tax incl.

Pre-order with unknown delivery date.
Anareus 25 let

25+ years of proven equipment and accessories.

Availability: Out of stock

ASPARTS092

: AirsoftParts

Accessories

  • 12,64 € In Stock

    : AirsoftParts

    ASPARTS010

    AirsoftParts DURAL 2013 piston head is a durable CNC-machined piston head made from EN AW 6012 T6 duralumin, designed for V2, V3 and V7 gearboxes with springs up to M170. It features pressure-assisted sealing through 9 front holes, a guide O-ring for centering inside the cylinder and an axial ball bearing that allows the spring to rotate more freely...

    12,64 €
    In Stock
    Add to cart
  • 12,64 € In Stock

    : AirsoftParts

    ASPARTS012

    AirsoftParts TECAFORM 2013 piston head is a lightweight CNC-machined piston head made from TECAFORM (POM), weighing 8.7 g and designed for V2, V3 and V7 gearboxes with springs up to M150. It features 9 holes for pressure-assisted sealing, a guide O-ring for centering inside the cylinder, an axial ball bearing and a through-locking nut for secure mounting.

    12,64 €
    In Stock
    Add to cart
  • 16,87 € In Stock

    : AirsoftParts

    ASPARTS017

    AirsoftParts CLASSIC cylinder head is a CNC-machined head made from EN AW 6012 T6 duralumin for V2 and V3 gearboxes. Two O-rings provide reliable sealing inside the cylinder, while the shaped 70 ShA impact pad cushions piston impacts. The electroless nickel-plated finish provides high hardness, wear resistance and low friction for smooth nozzle movement.

    16,87 €
    In Stock
    Add to cart
  • 16,87 € In Stock

    : AirsoftParts

    ASPARTS020

    AirsoftParts full ribbed cylinder is a precisely manufactured stainless steel air seal upgrade part for AEGs with an inner barrel over 400 mm. The new Gen 1.2 features revised dimensions for better compatibility and a smoother inner surface. The cylinder has an inner diameter of 23.95 mm, a ground finish and cooling grooves around the outer circumference...

    16,87 €
    In Stock
    Add to cart
  • 1,23 € In Stock

    : AirsoftParts

    ASPARTS082

    AirsoftParts replacement sealing O-ring for a duralumin nozzle is a service part designed to restore the correct seal between the nozzle and cylinder head. During operation, repeated nozzle movement gradually deforms and wears the seal, which can lead to reduced air seal performance. We recommend replacement every 10,000 shots or once a year.

    1,23 €
    In Stock
    Add to cart
  • 23,22 € In Stock

    : AirsoftParts

    ASPARTS093

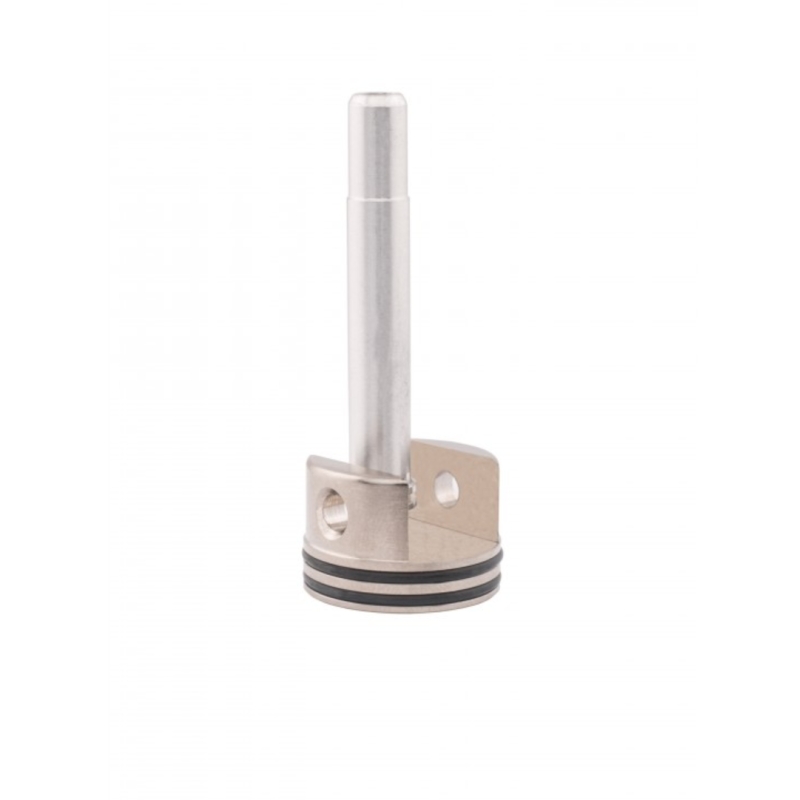

    AirsoftParts cylinder head for ARES / Delta Armory vz. 58 is a CNC-machined cylinder head made from EN AW 6012 T6 duralumin, designed specifically for the non-standard gearbox of vz. 58 rifles. Two O-rings provide effective sealing, the shaped 70 ShA impact pad cushions piston impacts, and the electroless nickel-plated finish offers high durability and...

    23,22 €
    In Stock
    Add to cart
  • 16,87 € In Stock

    : AirsoftParts

    ASPARTS121

    AirsoftParts piston with full metal teeth combines a durable high-strength plastic body with a full metal rack with 14 teeth. The new Gen. 1.2 features a solid front section without lightening and weighs 15.6 g. The piston is designed for standard V2, V3, V6 and V7 AEG gearboxes and setups with springs up to M160.

    16,87 €
    Out of stock
    Ask without obligation
    Pre-order with unknown delivery date.
  • 3,81 € In Stock
    New

    : Specna Arms

    SPARMS444

    Specna Arms silicone oil spray with a volume of 150 ml is a universal maintenance product for airsoft guns. The low-viscosity silicone oil easily reaches O-rings, seals, valves and moving parts, reduces friction and helps protect rubber and plastic components against drying out and ageing.

    3,81 €
    In Stock
    Add to cart

AirsoftParts Duralumin Nozzle Set for ARES / Delta Armory vz.58

This expert product description was prepared by the ANAREUS.cz expert team. All rights to this unique content are tied to the anareus.cz domain.AirsoftParts duralumin nozzle set for ARES / Delta Armory vz.58 contains three length variants of 49.2 mm, 49.4 mm and 49.6 mm, allowing the nozzle to be matched more precisely to the specific air seal system and hop-up chamber setup. In practice, even a difference of a few tenths of a millimeter can affect how the nozzle contacts the hop-up bucking and whether the gun feeds BBs correctly and maintains a proper air seal. All three nozzles are CNC-machined from EN AW 6012 duralumin and use one internal O-ring to seal the connection with the cylinder head. When finding the correct nozzle length, we recommend checking both the air seal and feeding reliability – the longest nozzle is not automatically the best choice, as excessive length can reduce the space available for feeding a BB into the hop-up chamber.

Key Features

Three Lengths for Precise Fine-Tuning

The set contains 49.2 / 49.4 / 49.6 mm nozzles, allowing the length to be adjusted in 0.2 mm increments to better match the specific gun setup.

Fine-Tuning Air Seal and Feeding

The correct nozzle length is important for proper contact with the hop-up bucking and sufficient space for feeding a BB. The set allows both requirements to be balanced in practice.

CNC-Machined EN AW 6012 Duralumin

All three nozzles are made from EN AW 6012 duralumin using CNC machining, allowing precise production of the individual length variants.

Each Nozzle With Its Own O-Ring

Each of the three nozzles uses its own internal sealing O-ring, which helps seal the connection between the nozzle and cylinder head.

Practical Set for Servicing and Tuning

Instead of a single length, the set offers three variants in 0.2 mm increments, making it easier to find a suitable setup when building or servicing the vz. 58 air seal system.

Technical Specifications

  • Type: nozzle set for vz.58 AEG air seal system
  • Platform: ARES / Delta Armory vz.58
  • Nozzle lengths: 49.2 / 49.4 / 49.6 mm
  • Difference between individual lengths: 0.2 mm
  • Material: EN AW 6012
  • Manufacturing: CNC machining
  • Seal: 1× O-ring on each nozzle

Package Contents

  • 1× 49.2 mm duralumin nozzle
  • 1× 49.4 mm duralumin nozzle
  • 1× 49.6 mm duralumin nozzle
  • 3× sealing O-ring

Frequently Asked Questions (FAQ)

Why Does the Set Include Three Different Nozzle Lengths?

Differences between individual guns and the components used may require fine-tuning of the nozzle length. The 49.2 / 49.4 / 49.6 mm variants allow you to find a suitable setup in 0.2 mm increments.

Is the Longest 49.6 mm Nozzle Always the Best Choice?

No. A longer nozzle may provide better contact with the hop-up bucking, but if it is too long, it may not retract far enough and can interfere with BB feeding. The aim is to find a length that provides both a good air seal and reliable feeding.

How Do I Determine the Correct Nozzle Length?

After installation, check the air seal, free movement of the nozzle and, most importantly, reliable BB feeding. If changing the length solves an air leak but causes feeding problems, that variant is not optimal for the specific setup.

Does Each Nozzle Have Its Own Sealing O-Ring?

Yes. The package contains 3 nozzles and 3 sealing O-rings, meaning one O-ring for each length variant.

ColorSilver
NozzleMetal
