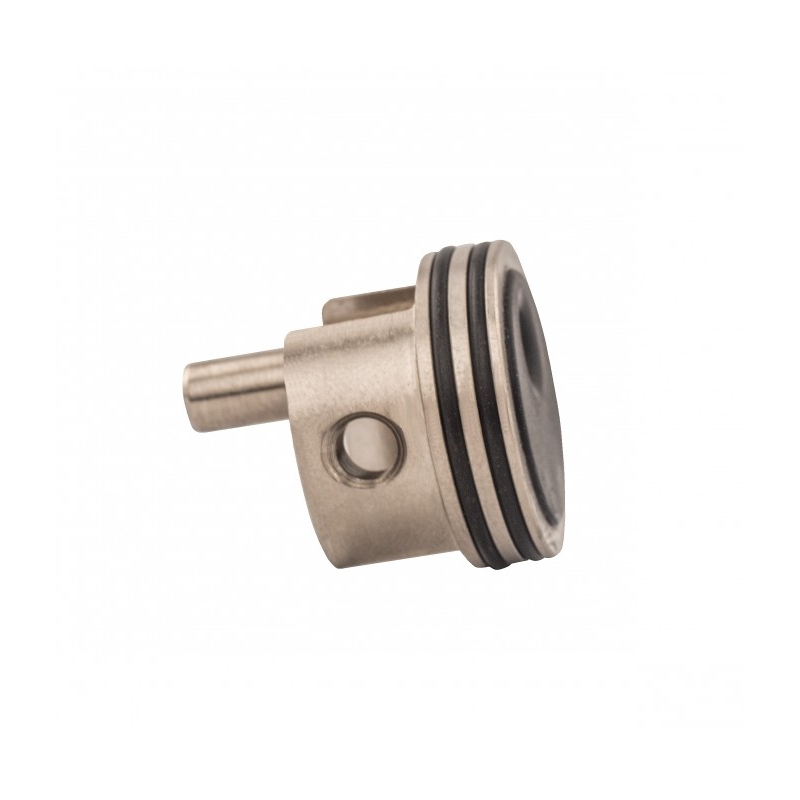

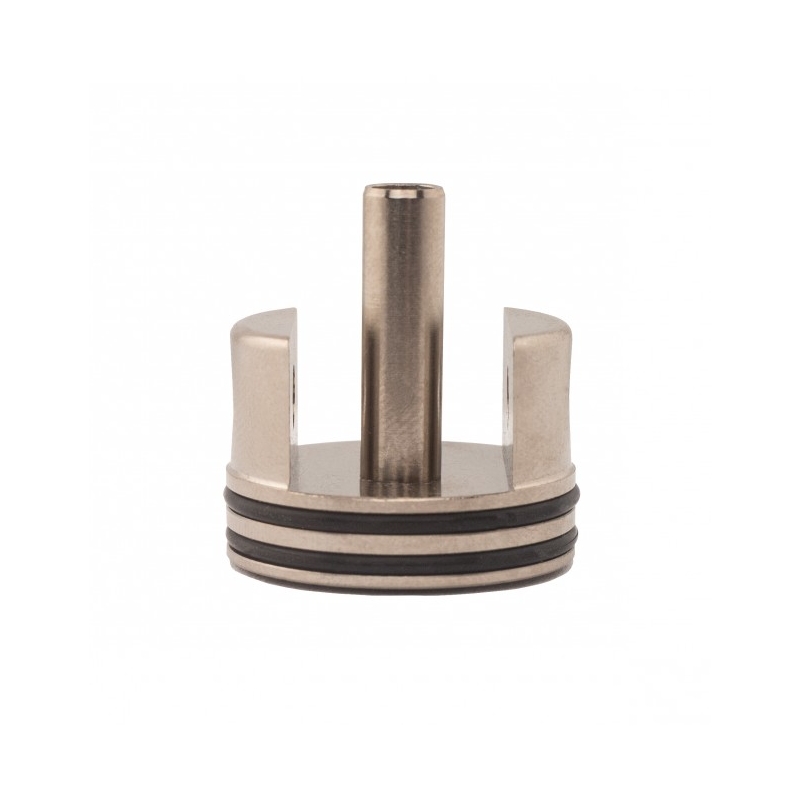

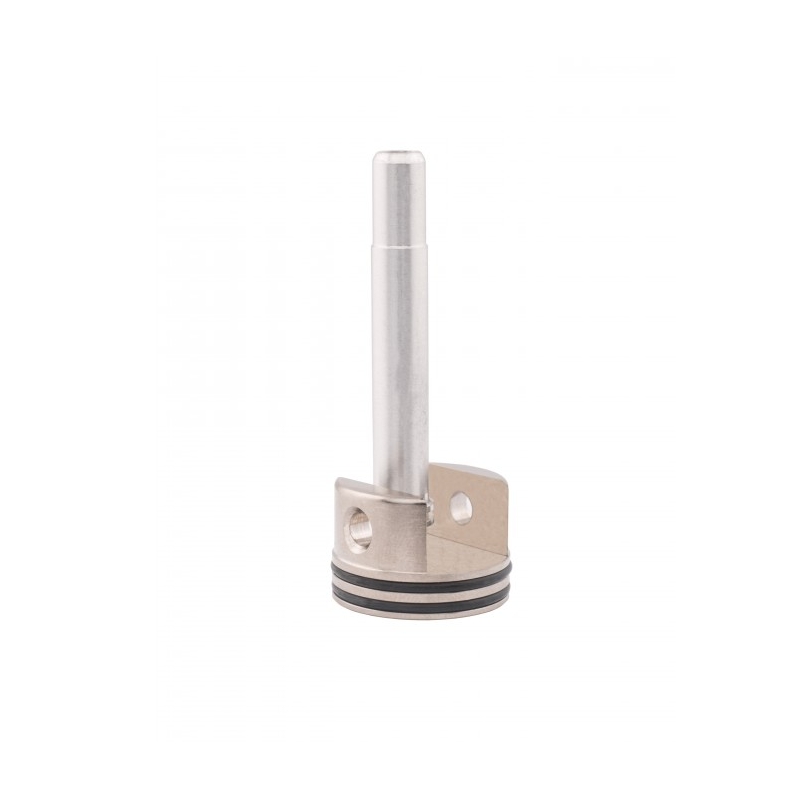

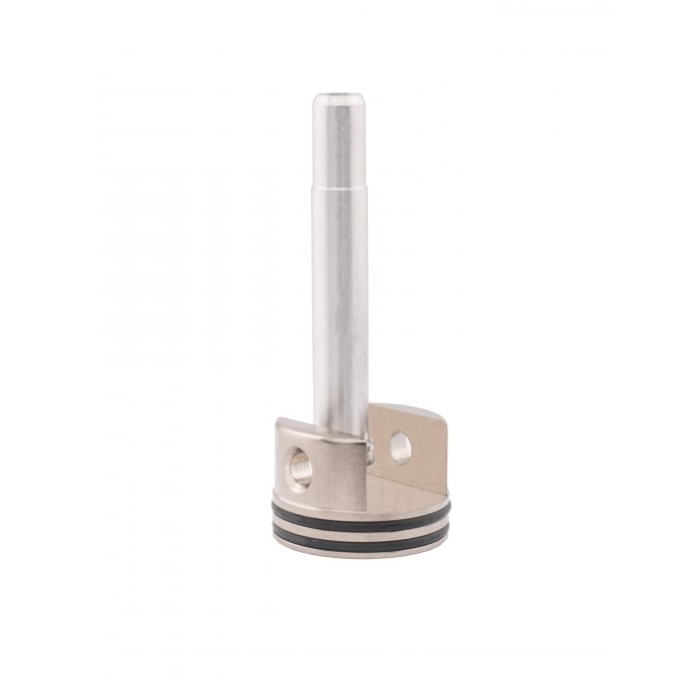

AirsoftParts ARES / Delta Armory vz.58 Silent Cylinder Head
AirsoftParts cylinder head for ARES / Delta Armory vz. 58 is a CNC-machined cylinder head made from EN AW 6012 T6 duralumin, designed specifically for the non-standard gearbox of vz. 58 rifles. Two O-rings provide effective sealing, the shaped 70 ShA impact pad cushions piston impacts, and the electroless nickel-plated finish offers high durability and low friction for smooth nozzle movement.
Another product variants
SilverOn stock
25+ years of proven equipment and accessories.
Accessories
16,92 € In StockAirsoftParts ARES / Delta Armory vz.58 Nozzle SetASPARTS092
AirsoftParts duralumin nozzle set for ARES / Delta Armory vz.58 in 49.2, 49.4 and 49.6 mm lengths offers three precisely graduated lengths for fine-tuning BB feeding and air seal performance. The nozzles are CNC-machined from EN AW 6012 duralumin, and each features its own sealing O-ring. The 0.2 mm increments allow you to select the length that best...
16,92 €Out of stock
3,76 € 5,88 € In Stock-36%AirsoftParts ARES / Delta Armory vz.58 Dural NozzleASPARTS113
AirsoftParts duralumin nozzle for ARES / Delta Armory vz.58 is a precision CNC-machined air seal component designed specifically for ARES and Delta Armory vz.58 airsoft guns. It is made from EN AW 6012 T6 duralumin and features an internal O-ring to seal the connection with the cylinder head. Depending on the specific length variant, it weighs 1.1–1.4 g...
3,76 € 5,88 €In StockReduced price!
23,22 € In StockAirsoftParts Silent Piston HeadASPARTS137
AirsoftParts silent piston head is a CNC-machined piston head made from EN AW 6012 T6 duralumin with a pneumatic brake that creates an air cushion before impact to reduce noise and dynamic shock. It features 9 holes for pressure-assisted sealing, an axial ball bearing and a polished surface. Designed for V2 and V3 gearboxes with springs up to M150.
23,22 €Out of stock- SA Silicone Grease (50 g)
SPARMS439
Specna Arms silicone grease in a practical 50g package is an essential service lubricant for airsoft gun maintenance. It is particularly suitable for O-rings, seals, AEG pneumatic systems, GBB valves and HPA systems. It helps reduce friction, protects sealing components from drying out and extends their service life.
6,34 €Out of stock - SA Silicone Oil Spray (150 ml)
SPARMS444
Specna Arms silicone oil spray with a volume of 150 ml is a universal maintenance product for airsoft guns. The low-viscosity silicone oil easily reaches O-rings, seals, valves and moving parts, reduces friction and helps protect rubber and plastic components against drying out and ageing.
3,81 €In Stock
AirsoftParts Cylinder Head for ARES and Delta Armory vz. 58
AirsoftParts cylinder head for ARES and Delta Armory vz. 58 is a specially designed air seal component for the gearbox of ARES / Delta Armory vz. 58 electric airsoft rifles. The body is precisely CNC-machined from EN AW 6012 T6 duralumin and uses two O-rings of different diameters to seal the space between the cylinder head and cylinder. The first is slightly smaller for easier insertion of the cylinder head into the cylinder, while the second has a larger diameter and provides the main seal of the assembly. The shaped and stepped impact ring with a hardness of 70 ShA helps cushion and distribute the mechanical impact of the piston head. The internal transition is rounded for smoother compressed-air flow towards the nozzle. The duralumin body features an electroless nickel-plated finish that creates a uniform and very smooth surface with high wear and corrosion resistance. According to the manufacturer, the surface hardness after plating reaches 660–850 HV (58–63 HRC), while the low-friction surface supports smooth nozzle movement. The cylinder head weighs 11.2 g, the manufacturer specifies a maximum recommended spring of M160, and it is made in the Czech Republic.
Key Features
Designed Specifically for ARES and Delta Armory vz. 58
The cylinder head is designed specifically for the gearbox of ARES vz. 58 airsoft rifles, so it is not a standard universal cylinder head for conventional gearboxes.
Double Seal With O-Rings
The two O-rings have different functions: the smaller one makes it easier to insert the cylinder head into the cylinder, while the larger one provides the main seal between the cylinder head and cylinder.
Shaped 70 ShA Impact Pad
The stepped impact ring with a hardness of 70 ShA helps cushion and distribute the impact of the piston head and reduces unwanted localized stress during impact.
Rounded Transition for Airflow
The internal section of the cylinder head uses a rounded transition towards the outlet, which supports smooth compressed-air flow from the cylinder to the nozzle.
Electroless Nickel-Plated Finish
Electroless nickel plating creates a uniform, hard and smooth surface layer with high wear and corrosion resistance. The low-friction surface is also beneficial for smooth nozzle movement.
Technical Specifications
- Designation: HV-VZ58
- Type: cylinder head for AEG
- Size: standard
- Material: EN AW 6012 T6
- Manufacturing: CNC machining
- Maximum recommended spring: M160
- Sealing: 2× sealing O-ring
- Surface finish: electroless nickel plating
- Surface hardness after plating: 660–850 HV (58–63 HRC)
- Impact pad: shaped stepped ring
- Impact pad hardness: 70 ShA
- Weight: 11.2 g
- Compatibility: ARES CSA vz. 58 / Delta Armory vz. 58 gearbox
- Country of manufacture: Czech Republic
Frequently Asked Questions (FAQ)
Is This Cylinder Head Designed for Standard V2 or V3 Gearboxes?
No. This version is specifically designed for the gearbox of ARES and Delta Armory vz. 58 airsoft rifles. Compatibility with standard V2 or V3 gearboxes is not specified by the manufacturer.
Why Does the Cylinder Head Use Two Sealing O-Rings?
The first O-ring has a slightly smaller diameter and makes it easier to insert the cylinder head into the cylinder. The second is larger and provides the main seal between the cylinder head and cylinder.
What Is the Function of the Shaped Impact Pad?
The stepped impact ring with a hardness of 70 ShA helps cushion and distribute the mechanical impact of the piston head, reducing localized stress.
What Are the Benefits of Electroless Nickel Plating?
The electroless nickel-plated layer creates a hard, uniform and smooth surface with high resistance to wear and corrosion. The smooth surface also reduces friction as the nozzle moves over the cylinder head.
| Variants | ARES / Delta Armory vz.58 |
| Color | Silver |
| Body/receiver material | Metal |
| Gearbox version | Typ |
