AirsoftParts AEG vz.58 Air Seal Upgrade Set
AirsoftParts air seal set for ARES / Delta Armory vz.58 offers a cost-effective combination of upgrade parts for the air seal system of vz.58 AEG rifles with inner barrels longer than 400 mm. The set includes a POM piston head, silent cylinder head, full ribbed cylinder and 49.2 mm nozzle. The individual parts form a matched set for improving the performance of your gun.
Another product variants
SilverOn stock
SilverOn stock
SilverOn stock
SilverOn stock
SilverOn stock
25+ years of proven equipment and accessories.
Accessories
4,19 € In StockAirsoftParts AoE Shims for Piston Heads (0,5 mm)ASPARTS102
AirsoftParts AoE shims for piston heads are designed for adjustment of the Angle of Engagement (AoE) between the piston teeth and sector gear in an AEG gearbox. The set contains 3 stainless steel shims with a thickness of 0.5 mm, which are installed under the piston head. By combining them, the piston position can be adjusted in fine increments to change...
4,19 €In Stock
16,87 € In StockAirsoftParts Piston with Full Metal TeethASPARTS121
AirsoftParts piston with full metal teeth combines a durable high-strength plastic body with a full metal rack with 14 teeth. The new Gen. 1.2 features a solid front section without lightening and weighs 15.6 g. The piston is designed for standard V2, V3, V6 and V7 AEG gearboxes and setups with springs up to M160.
16,87 €Out of stock
19,41 € In StockAirsoftParts High-Speed Piston with Full Metal TeethASPARTS125
AirsoftParts high-speed piston with full metal teeth is a lightweight AEG piston designed for setups where low moving mass and a fast operating cycle are important. The lightened high-strength plastic body is combined with a metal rack with 14 teeth. Thanks to 264 lightening holes, it weighs only 13.9 g and is designed for springs up to M140.
19,41 €Out of stock- SA Silicone Grease (50 g)
SPARMS439
Specna Arms silicone grease in a practical 50g package is an essential service lubricant for airsoft gun maintenance. It is particularly suitable for O-rings, seals, AEG pneumatic systems, GBB valves and HPA systems. It helps reduce friction, protects sealing components from drying out and extends their service life.
6,34 €Out of stock - SA Silicone Oil Spray (150 ml)
SPARMS444
Specna Arms silicone oil spray with a volume of 150 ml is a universal maintenance product for airsoft guns. The low-viscosity silicone oil easily reaches O-rings, seals, valves and moving parts, reduces friction and helps protect rubber and plastic components against drying out and ageing.
3,81 €In Stock

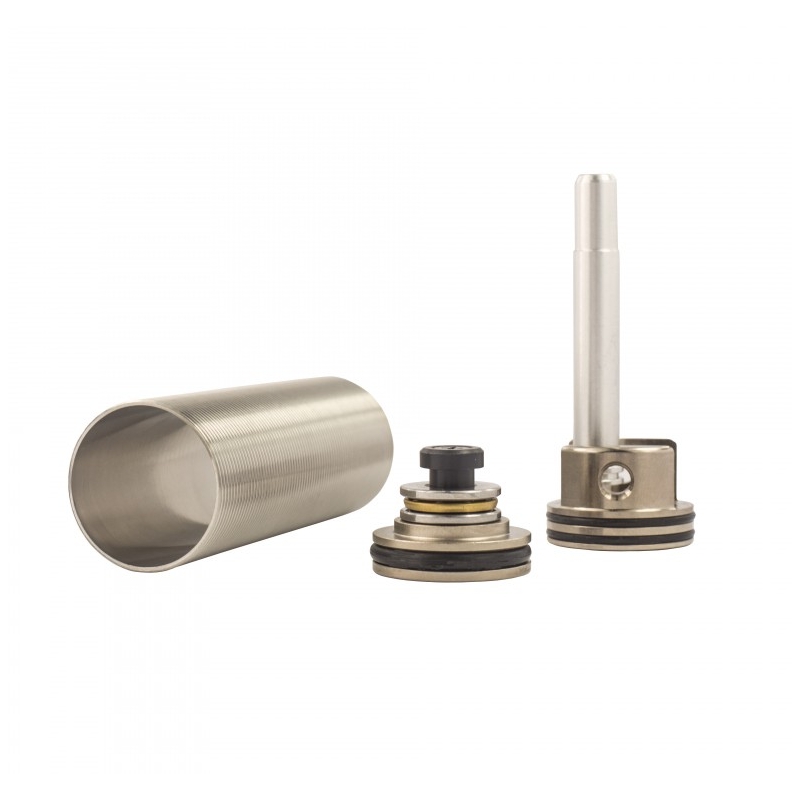

AirsoftParts Air Seal Set for ARES and Delta Armory vz.58 AEG
AirsoftParts air seal set for ARES / Delta Armory vz.58 combines four important AEG air seal components in one cost-effective set. It includes a POM piston head, silent cylinder head, full cylinder and a specific 49.2 mm nozzle. This combination is designed for vz.58-type AEG rifles and provides a practical solution when replacing a major part of the air seal system or building a new configuration. The full non-ported cylinder allows the entire working volume to be used, while the piston head, cylinder head and nozzle form interconnected parts of the compression system. Proper operation depends on their mutual air seal and compatibility with the specific gun configuration. In particular, the 49.2 mm nozzle length is a critical dimension, so the design and dimensions of the original components in the specific ARES / Delta Armory vz.58 AEG should be verified before installation.
Key Features
Four Air Seal Components in One Set
The set combines a piston head, cylinder head, cylinder and nozzle, so the main interconnected air seal components do not need to be purchased separately.
POM Piston Head
The set includes a POM piston head that operates inside the cylinder and uses its seal to generate the required air pressure as the piston moves.
Silent Cylinder Head
The silent cylinder head closes the front section of the compression chamber, and its design also helps dampen the mechanical impact of the piston assembly.
Full Cylinder
The full non-ported design allows the entire working volume of the cylinder to be used. Correctly matching the air seal volume to the specifications of the inner barrel is important for proper operation of the assembly.
Specific 49.2 mm Nozzle
The set includes a 49.2 mm nozzle designed for this ARES / Delta Armory vz.58 air seal configuration. The correct nozzle length is important for proper interaction with the hop-up chamber and hop-up bucking.
Technical Specifications
- Type: air seal set for AEG
- Platform: ARES / Delta Armory vz.58
- Piston head: POM (flat)
- Cylinder head: silent (duralumin)
- Cylinder: full ribbed cylinder (for inner barrels over 400 mm)
- Nozzle length: 49.2 mm (duralumin)
Package Contents
- 1× POM piston head
- 1× silent cylinder head
- 1× full cylinder
- 1× 49.2 mm nozzle
Frequently Asked Questions (FAQ)
Is the Set Designed for All vz.58 AEGs?
The manufacturer specifies this set for ARES / Delta Armory vz.58 AEGs. However, the design of the specific model should be verified before purchase, especially the required 49.2 mm nozzle length and the compatibility of the cylinder head with the gearbox used.
What Does the Set Include?
The package includes a POM piston head, silent cylinder head, full cylinder and 49.2 mm nozzle. These are four interconnected components of the AEG air seal system.
Why Is the Nozzle 49.2 mm Long?
The nozzle corresponds to the specific air seal system layout of the vz.58 platform. Its length affects proper interaction with the hop-up chamber and hop-up bucking, so it cannot automatically be replaced with a standard shorter nozzle from other AEG platforms.
What Is the Purpose of the Full Cylinder?
The full cylinder has no port limiting the compression stroke, allowing the entire available working volume of the cylinder to be used. For optimal operation, it is always important to correctly match the cylinder volume to the specific inner barrel and other air seal components.
| Variants | ARES / Delta Armory vz.58 |
| Color | Silver |
| Body/receiver material | Metal |
| Gearbox version | Typ |
| Piston head | Plastic |
| Nozzle | Metal |
