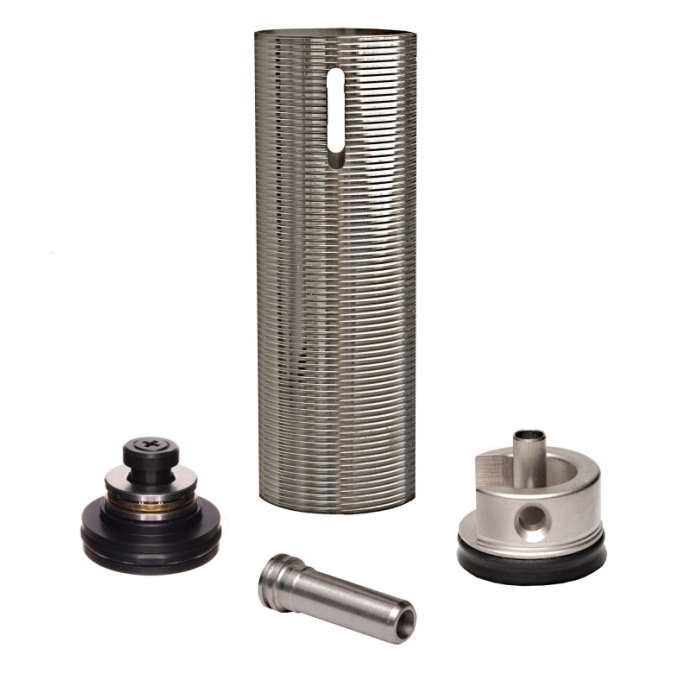

AirsoftParts AEG MP5 Air Seal Upgrade Set
AirsoftParts air seal set for MP5 offers a cost-effective combination of upgrade parts for the air seal system of MP5-type AEG submachine guns with inner barrels up to 400 mm. The set includes a POM piston head, silent cylinder head, ported cylinder and 20.4 mm nozzle. The individual parts form a matched set for improving the performance of your gun.
Another product variants
SilverOn stock
SilverOn stock
SilverOn stock
SilverOn stock
SilverOn stock
25+ years of proven equipment and accessories.
Accessories
4,19 € In StockAirsoftParts AoE Shims for Piston Heads (0,5 mm)ASPARTS102
AirsoftParts AoE shims for piston heads are designed for adjustment of the Angle of Engagement (AoE) between the piston teeth and sector gear in an AEG gearbox. The set contains 3 stainless steel shims with a thickness of 0.5 mm, which are installed under the piston head. By combining them, the piston position can be adjusted in fine increments to change...
4,19 €In Stock
16,87 € In StockAirsoftParts Piston with Full Metal TeethASPARTS121
AirsoftParts piston with full metal teeth combines a durable high-strength plastic body with a full metal rack with 14 teeth. The new Gen. 1.2 features a solid front section without lightening and weighs 15.6 g. The piston is designed for standard V2, V3, V6 and V7 AEG gearboxes and setups with springs up to M160.
16,87 €Out of stock
19,41 € In StockAirsoftParts High-Speed Piston with Full Metal TeethASPARTS125
AirsoftParts high-speed piston with full metal teeth is a lightweight AEG piston designed for setups where low moving mass and a fast operating cycle are important. The lightened high-strength plastic body is combined with a metal rack with 14 teeth. Thanks to 264 lightening holes, it weighs only 13.9 g and is designed for springs up to M140.
19,41 €Out of stock- SA Silicone Grease (50 g)
SPARMS439
Specna Arms silicone grease in a practical 50g package is an essential service lubricant for airsoft gun maintenance. It is particularly suitable for O-rings, seals, AEG pneumatic systems, GBB valves and HPA systems. It helps reduce friction, protects sealing components from drying out and extends their service life.
6,34 €Out of stock - SA Silicone Oil Spray (150 ml)
SPARMS444
Specna Arms silicone oil spray with a volume of 150 ml is a universal maintenance product for airsoft guns. The low-viscosity silicone oil easily reaches O-rings, seals, valves and moving parts, reduces friction and helps protect rubber and plastic components against drying out and ageing.
3,81 €In Stock

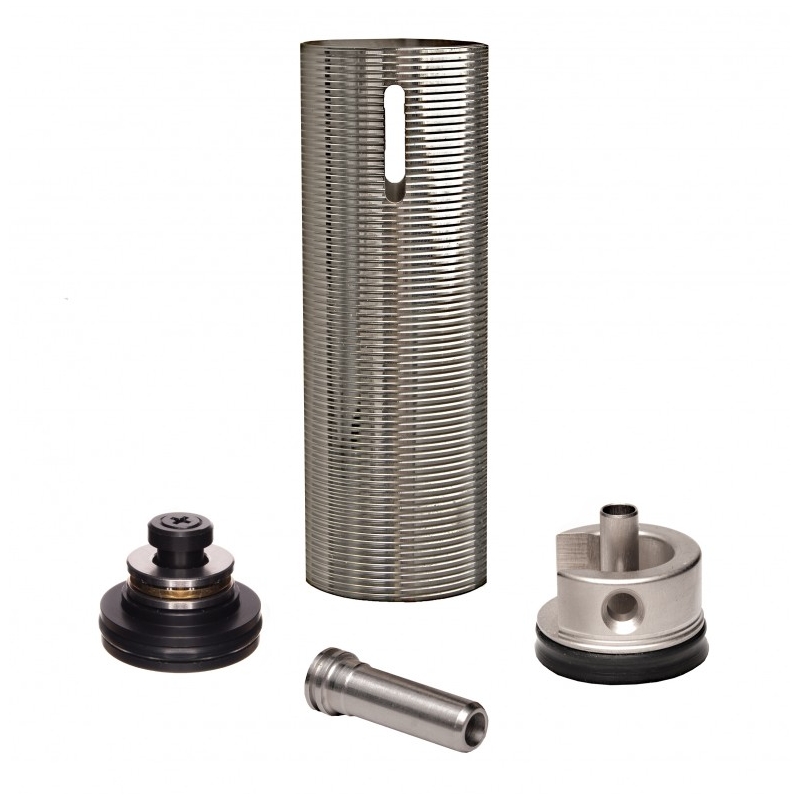

AirsoftParts Air Seal Set for MP5 AEG
AirsoftParts air seal set for MP5 combines four important AEG air seal components in one cost-effective set. It includes a POM piston head, silent cylinder head, ported cylinder and a 20.4 mm nozzle. This combination is designed for MP5-type AEGs and provides a practical solution when replacing a major part of the air seal system or building a new configuration. The ported cylinder has a reduced usable air volume compared with a full cylinder, which suits the shorter inner barrels typical of the MP5 series. The piston head, cylinder head and nozzle form interconnected parts of the compression system, where proper air sealing and correct matching with the specific gun are essential for proper operation. In particular, the 20.4 mm nozzle length should be compared with the original part before installation, as different MP5 variants and manufacturers may use different air seal component dimensions.
Key Features
Four Air Seal Components in One Set
The set combines a piston head, cylinder head, cylinder and nozzle, so the main interconnected air seal components do not need to be purchased separately.
POM Piston Head
The set includes a POM piston head that moves inside the cylinder and uses its seal to generate the required air pressure as the piston moves.
Silent Cylinder Head
The silent cylinder head closes the front section of the compression chamber, and its design also helps dampen the mechanical impact of the piston assembly.
Ported Cylinder
The ported cylinder has a reduced usable working volume compared with a full cylinder, allowing the amount of compressed air to be matched to configurations with shorter inner barrels.
20.4 mm Nozzle
The set includes a 20.4 mm nozzle. Before installation, it is advisable to verify the required length for the specific combination of gearbox and hop-up chamber used in the MP5.
Technical Specifications
- Type: air seal set for AEG
- Platform: MP5
- Piston head: POM (flat)
- Cylinder head: silent (duralumin)
- Cylinder: ported (for 200–400 mm inner barrels)
- Nozzle length: 20.4 mm (duralumin)
Package Contents
- 1× POM piston head
- 1× silent cylinder head
- 1× ported cylinder
- 1× 20.4 mm nozzle
Frequently Asked Questions (FAQ)
Is the Set Designed for All MP5-Type AEGs?
The set is designed by the manufacturer for MP5-type AEGs, but specific compatibility depends on the design of the particular model. It is especially important to verify the 20.4 mm nozzle length and the compatibility of the other components with the gearbox and hop-up chamber used.
What Does the Set Include?
The package includes a POM piston head, silent cylinder head, ported cylinder and 20.4 mm nozzle. These are four interconnected components of the AEG air seal system.
Why Does the MP5 Set Include a Ported Cylinder?
The port in the cylinder reduces its usable working volume compared with a full cylinder. This solution is used for configurations with shorter inner barrels where the full volume of a non-ported cylinder is not required.
Why Is It Important to Check the Nozzle Length?
The correct nozzle length affects how it works with the hop-up chamber and hop-up bucking. This set uses a 20.4 mm nozzle, so its dimensions should be compared with the original part or the requirements of the specific gun before purchase.
| Variants | AEG MP5 |
| Color | Silver |
| Body/receiver material | Metal |
| Gearbox version | V2 |
| Piston head | Plastic |
| Nozzle | Metal |
