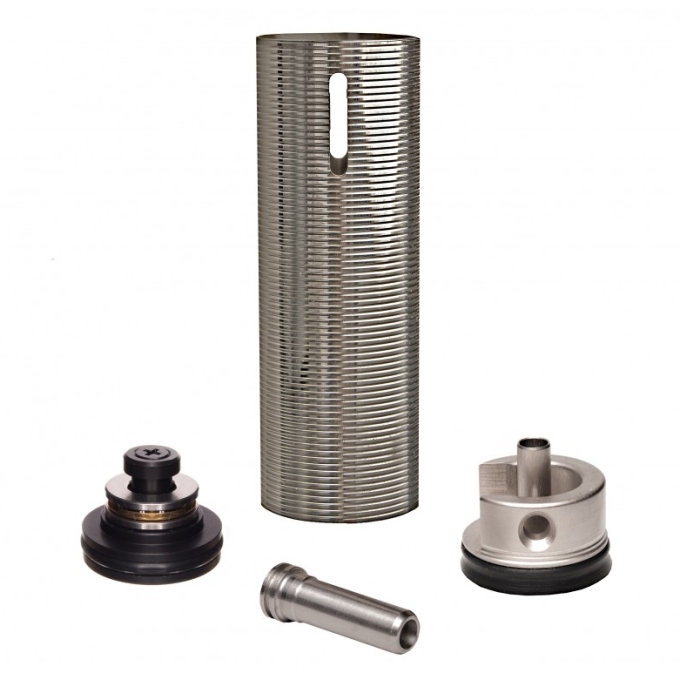

AirsoftParts AEG G36 Air Seal Upgrade Set
AirsoftParts air seal set for G36 offers a cost-effective combination of upgrade parts for the air seal system of G36C, G36K AEG rifles and other G36-platform guns with inner barrels up to 400 mm. The set includes a POM piston head, silent cylinder head, ported cylinder and 25.2 mm nozzle. The individual parts form a matched set for improving the performance of your gun.
Another product variants
SilverOn stock
SilverOn stock
SilverOn stock
SilverOn stock
SilverOn stock
25+ years of proven equipment and accessories.
Accessories
4,19 € In StockAirsoftParts AoE Shims for Piston Heads (0,5 mm)ASPARTS102
AirsoftParts AoE shims for piston heads are designed for adjustment of the Angle of Engagement (AoE) between the piston teeth and sector gear in an AEG gearbox. The set contains 3 stainless steel shims with a thickness of 0.5 mm, which are installed under the piston head. By combining them, the piston position can be adjusted in fine increments to change...
4,19 €In Stock
16,87 € In StockAirsoftParts Piston with Full Metal TeethASPARTS121
AirsoftParts piston with full metal teeth combines a durable high-strength plastic body with a full metal rack with 14 teeth. The new Gen. 1.2 features a solid front section without lightening and weighs 15.6 g. The piston is designed for standard V2, V3, V6 and V7 AEG gearboxes and setups with springs up to M160.
16,87 €Out of stock
19,41 € In StockAirsoftParts High-Speed Piston with Full Metal TeethASPARTS125
AirsoftParts high-speed piston with full metal teeth is a lightweight AEG piston designed for setups where low moving mass and a fast operating cycle are important. The lightened high-strength plastic body is combined with a metal rack with 14 teeth. Thanks to 264 lightening holes, it weighs only 13.9 g and is designed for springs up to M140.
19,41 €Out of stock- SA Silicone Grease (50 g)
SPARMS439
Specna Arms silicone grease in a practical 50g package is an essential service lubricant for airsoft gun maintenance. It is particularly suitable for O-rings, seals, AEG pneumatic systems, GBB valves and HPA systems. It helps reduce friction, protects sealing components from drying out and extends their service life.
6,34 €Out of stock - SA Silicone Oil Spray (150 ml)
SPARMS444
Specna Arms silicone oil spray with a volume of 150 ml is a universal maintenance product for airsoft guns. The low-viscosity silicone oil easily reaches O-rings, seals, valves and moving parts, reduces friction and helps protect rubber and plastic components against drying out and ageing.
3,81 €In Stock

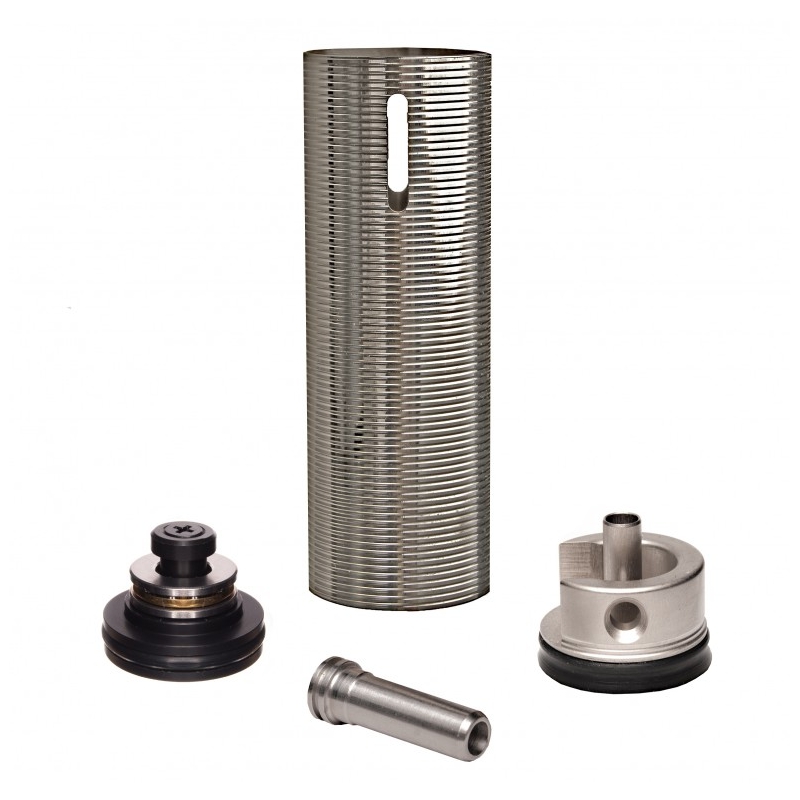

AirsoftParts Air Seal Set for G36 AEG
AirsoftParts air seal set for G36 combines four important AEG air seal components in one cost-effective set. It includes a POM piston head, silent cylinder head, ported cylinder and a 25.2 mm nozzle. This combination is designed for G36-type AEG rifles and provides a practical solution when replacing a major part of the air seal system or building a new configuration. The ported cylinder has a reduced usable air volume compared with a full cylinder, while the piston head, cylinder head and nozzle form interconnected parts of the compression system. Proper operation depends on both their mutual air seal and correct matching with the specific gun. In particular, the 25.2 mm nozzle length should be compared with the original part before installation, as different G36 models and manufacturers may use different air seal component dimensions.
Key Features
Four Air Seal Components in One Set
The set combines a piston head, cylinder head, cylinder and nozzle, so the main interconnected air seal components do not need to be purchased separately.
POM Piston Head
The set includes a POM piston head that operates inside the cylinder and uses its seal to generate the required air pressure as the piston moves.
Silent Cylinder Head
The silent cylinder head closes the front section of the compression chamber, and its design also helps dampen the mechanical impact of the piston assembly.
Ported Cylinder
The ported cylinder has a reduced usable working volume compared with a full cylinder. Correctly matching the cylinder volume to the length and inner diameter of the barrel is important for efficient operation of the air seal system.
25.2 mm Nozzle
The set includes a 25.2 mm nozzle. Before installation, it is advisable to verify the required length for the specific combination of gearbox and hop-up chamber used in the G36.
Technical Specifications
- Type: air seal set for AEG
- Platform: G36
- Piston head: POM (flat)
- Cylinder head: silent (duralumin)
- Cylinder: ported (for 200–400 mm inner barrels)
- Nozzle length: 25.2 mm (duralumin)
Package Contents
- 1× POM piston head
- 1× silent cylinder head
- 1× ported cylinder
- 1× 25.2 mm nozzle
Frequently Asked Questions (FAQ)
Is the Set Designed for All G36-Type AEG Rifles?
The set is designed by the manufacturer for G36-type AEGs, but specific compatibility depends on the design of the particular model. It is especially important to verify the 25.2 mm nozzle length and the compatibility of the other components with the gearbox and hop-up chamber used.
What Does the Set Include?
The package includes a POM piston head, silent cylinder head, ported cylinder and 25.2 mm nozzle. These are four interconnected components of the AEG air seal system.
What Is the Purpose of the Port in the Included Cylinder?
The port in the cylinder determines the start of effective compression and therefore reduces the usable air volume compared with a full cylinder. For an optimal configuration, the cylinder volume should be matched to the specifications of the inner barrel used.
Why Is It Important to Check the Nozzle Length?
The correct nozzle length affects how it works with the hop-up chamber and hop-up bucking. This set uses a 25.2 mm nozzle, so its dimensions should be compared with the original part or the requirements of the specific gun before purchase.
| Variants | AEG G36 |
| Color | Silver |
| Body/receiver material | Metal |
| Gearbox version | V3 |
| Piston head | Plastic |
| Nozzle | Metal |
