VO OWLSET ARGON ES 1.2x10 NANO Thermal Scope – Black

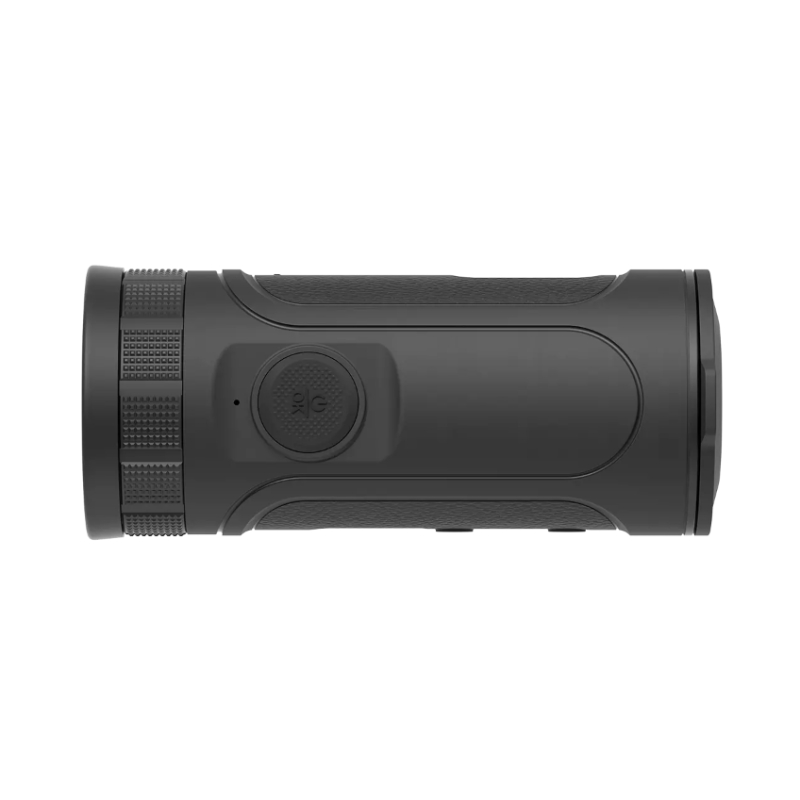

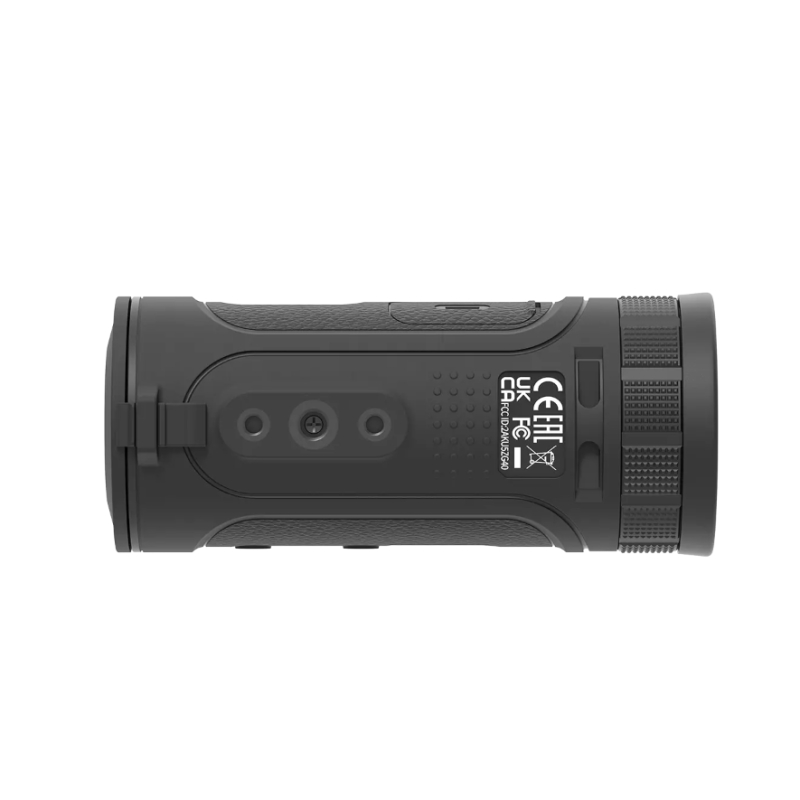

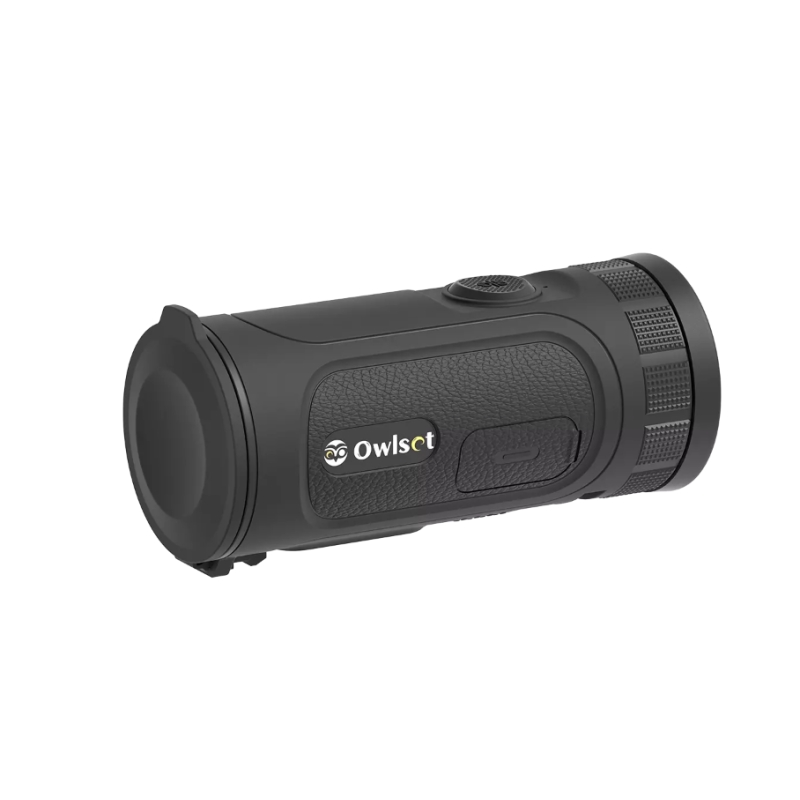

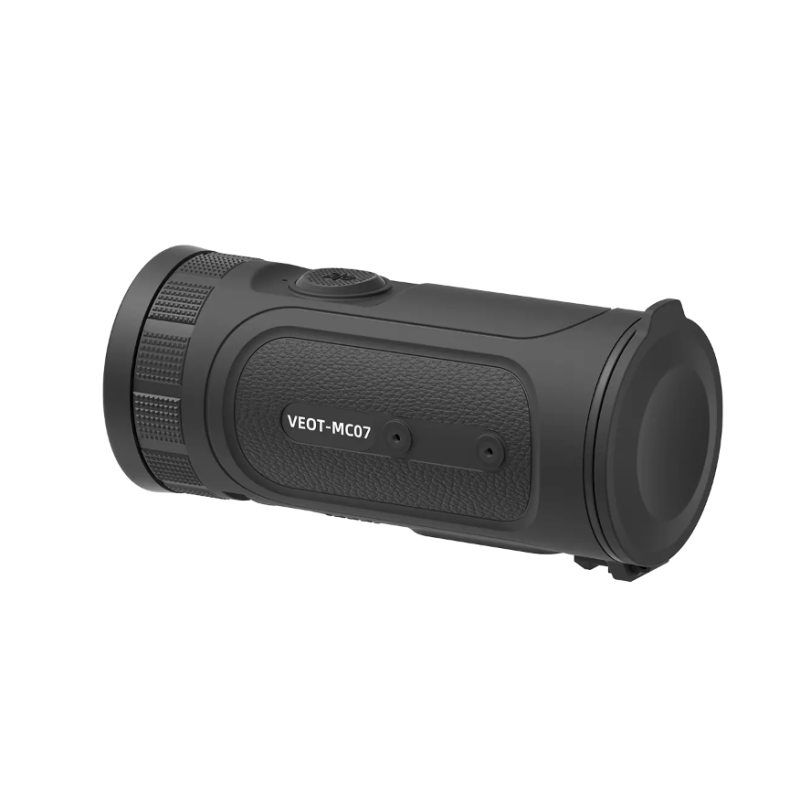

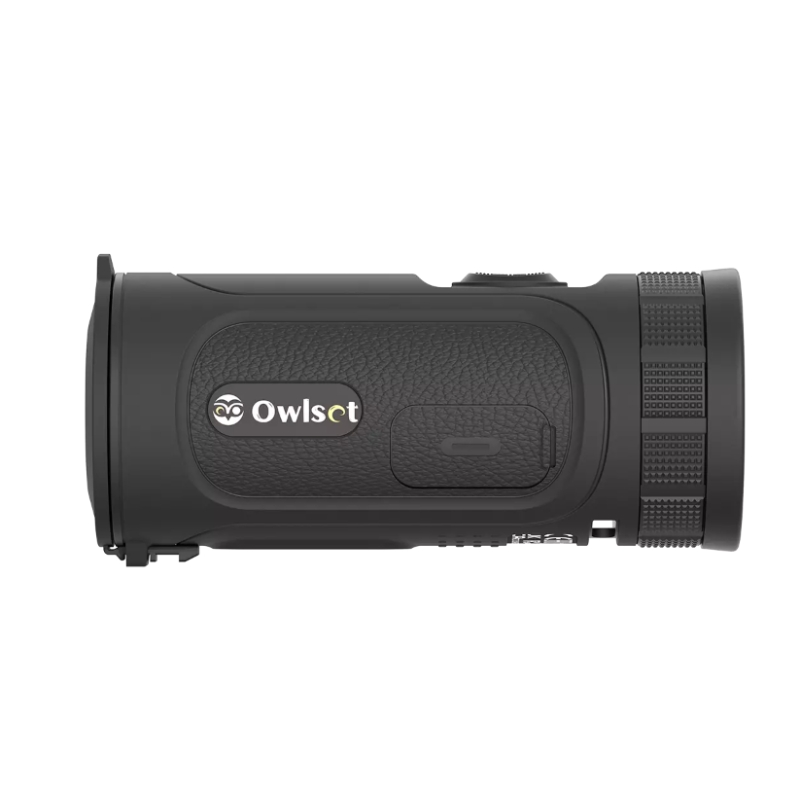

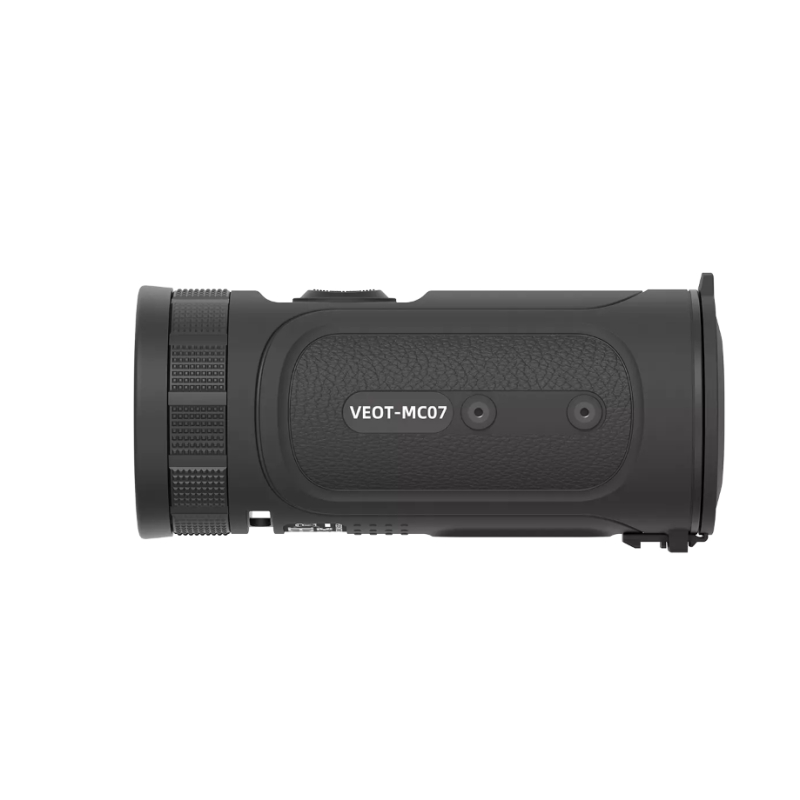

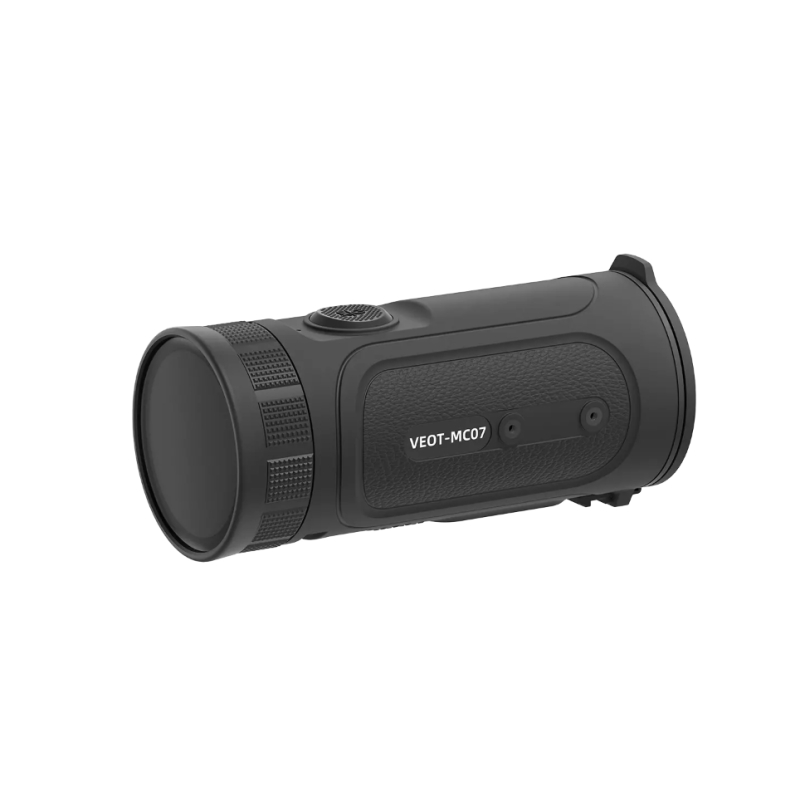

OWLSET ARGON ES 1.2x10 NANO thermal monocular by Vector Optics

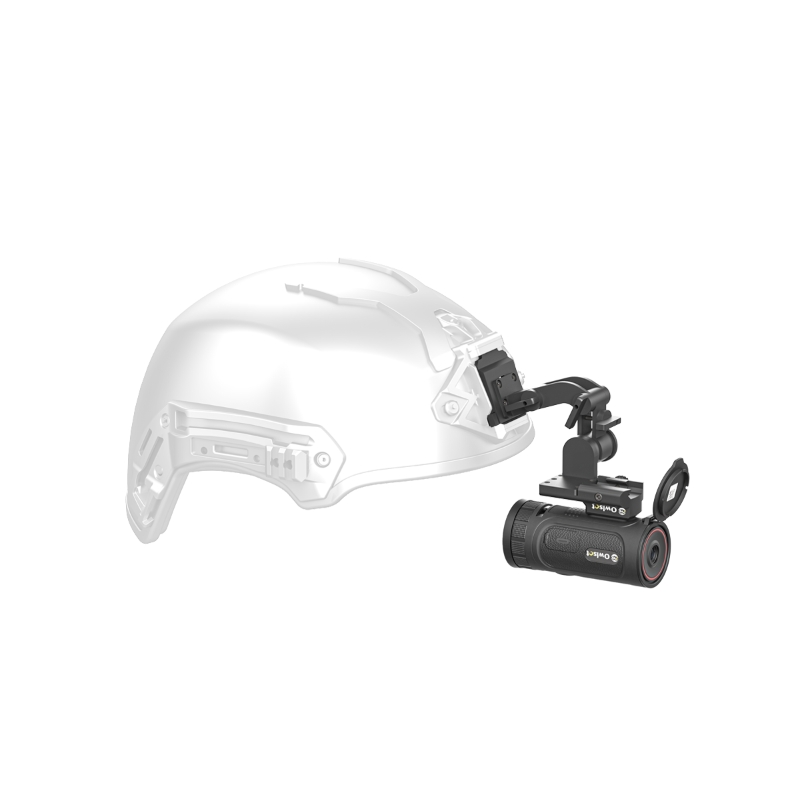

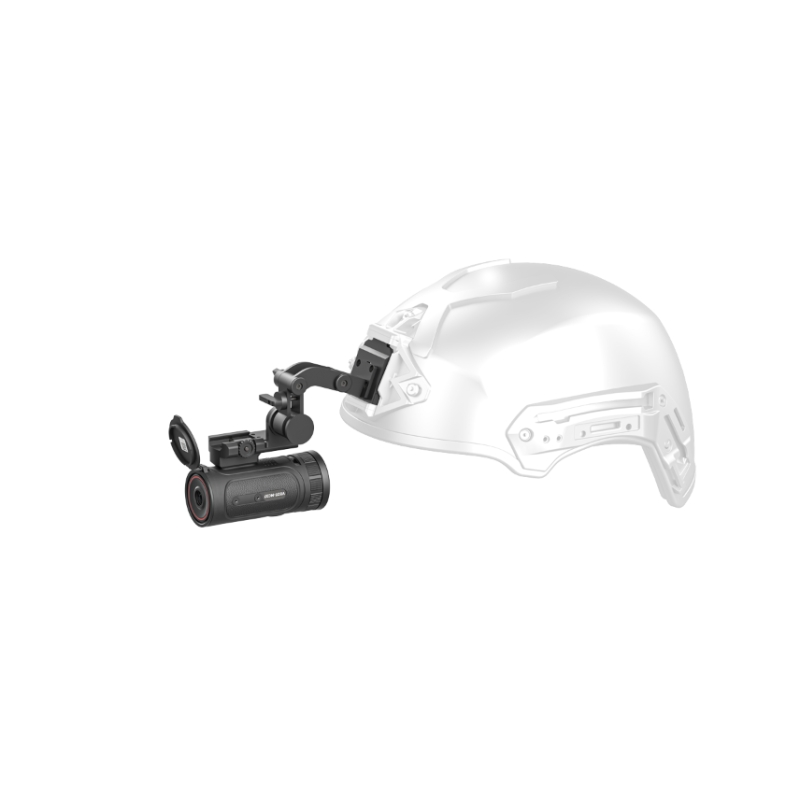

Looking for an ultra-light and compact thermal monocular that is smaller than a typical smartphone yet still delivers a high-quality image? The OWLSET ARGON ES 1.2x10 NANO from Vector Optics weighs only 205 g, but inside it features a VOx infrared detector with resolution 256 × 192 px and sensitivity NETD 30 mK, allowing the device to distinguish even small temperature differences. This means better recognition of people, wildlife or objects in the field. The device can detect targets up to 500 m. Control is handled through a 1.43" AMOLED touchscreen display, which allows quick switching of color palettes or starting photo and video recording. The device also features built-in 16 GB memory and dual Wi-Fi for transferring data to a mobile application. Thanks to IP67 water resistance and up to 6 hours of operation, the device is suitable for hunting, tactical observation, airsoft, outdoor activities or search operations. After purchasing the mount VEOTM-01 the thermal device can also be installed directly on a weapon’s RIS rail or attached to the OWNV-MT10 flip mount and worn on a helmet.

Key features of the Vector Optics OWLSET ARGON ES 1.2x10 NANO thermal device

Lightweight and compact design

The thermal device weighs only 205 g and measures just 111 mm. This makes it easy to store in a pocket, pouch or gear and keep it ready for use.

VOx infrared detector

The sensor with resolution 256 × 192 px and pixel size 12 μm provides a sharp image and stable detection of heat sources even in demanding conditions.

AMOLED touchscreen display

The integrated 1.43" AMOLED display with resolution 466 × 466 px allows intuitive control of functions and comfortable viewing.

Built-in memory and recording

Internal 16 GB memory allows storing photos, videos and audio recordings directly on the device without an external card.

Image color palettes

Several display modes are available including White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot or Sepia for better detail visibility in different environments.

Wi-Fi connectivity

Dual Wi-Fi 2.4G and 5G enables stable connection with a mobile application and quick transfer of photos or videos to a phone.

Durable construction and battery life

The device meets the IP67 standard, meaning it is resistant to rain and dust. The built-in battery offers up to 6 hours of operation and supports fast charging 20 W.

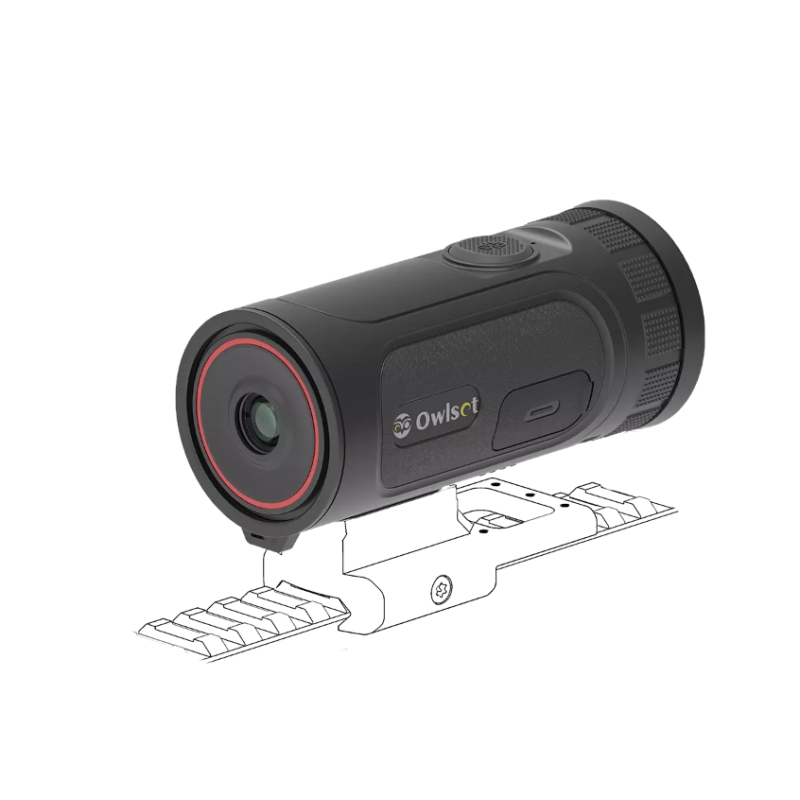

OWLSET ARGON ES 1.2x10 NANO with VEOTM-01 RIS mount

Example of the thermal device installed on the VEOTM-01 RIS mount (available separately or in our set with mount).

Technical specifications

• Magnification: 1.2 to 4.8×
• Objective lens diameter: 10 mm F1.0
• Sensor resolution: 256 × 192 px 12 μm
• Detector type: VOx Vanadium Oxide
• NETD: 30 mK
• Field of view: 13.1° × 13.1°
• Display: AMOLED 1.43" 466 × 466 px, touchscreen
• Diopter adjustment: −5 to +5
• Detection distance: 500 m
• Color palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
• Memory: Built-in 16 GB
• Wi-Fi: 2.4G and 5G
• Battery: Built-in, runtime 6 h, fast charging 20 W
• Water resistance: IP67
• Dimensions: 111 × 49 mm
• Weight: 205 g
• Operating temperature: −20 to +50 °C

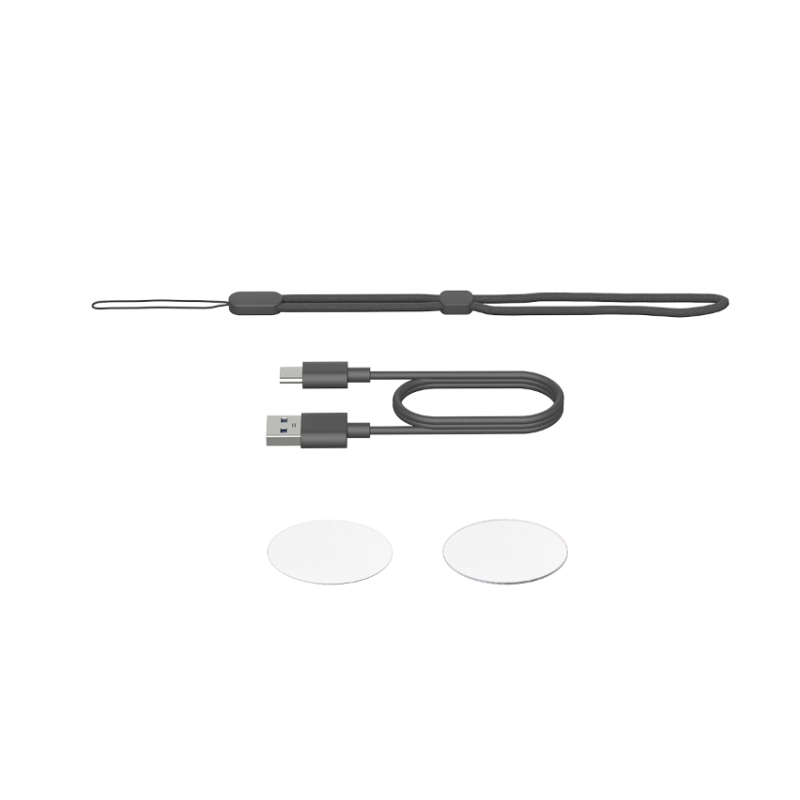

What’s included in the package?

• OWLSET ARGON ES 1.2x10 NANO thermal monocular
• Wrist strap
• USB C cable
• 2× screen protector
• User manual

Notice, disabling Clean Mode

The device is factory set to Clean Mode, which limits some functions. To activate full functionality this mode must be disabled.

1. Turn on the device.
2. While the device is powered on quickly press the power button 8× in succession.
3. A message confirming the termination of Clean Mode will appear on the display.
4. The device will then switch to normal operating mode.

The button presses must be quick and continuous, otherwise the operation will not start. After disabling Clean Mode no further configuration is required.
