VO OWLSET ARGON ES 1.2x10 NANO Thermal Scope with RIS Mount – Black

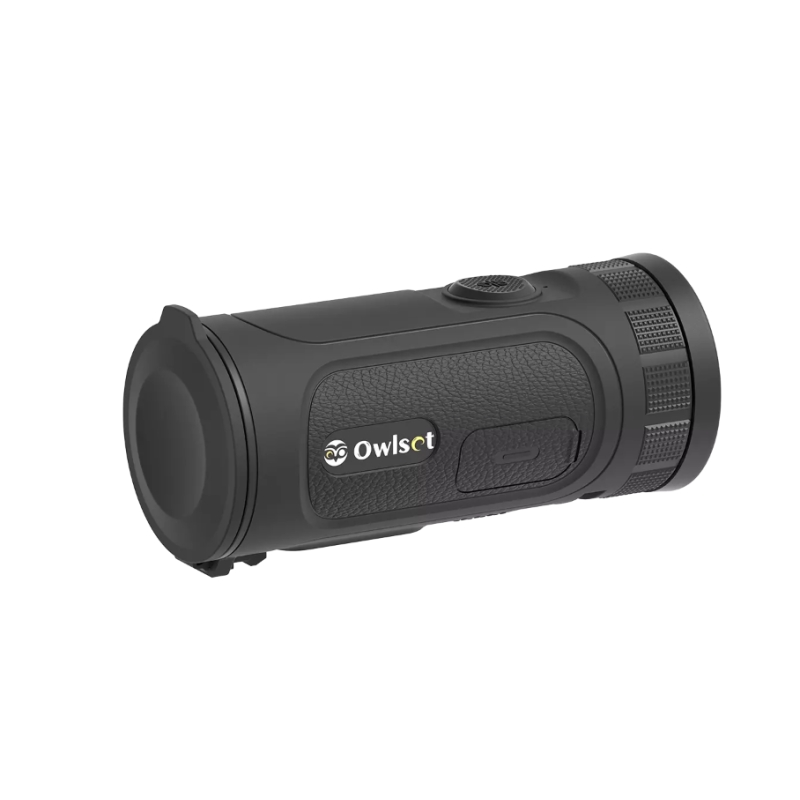

OWLSET ARGON ES 1.2x10 NANO thermal monocular by Vector Optics

Looking for an ultra lightweight and compact thermal monocular that is smaller than a regular smartphone yet still provides high image quality? The OWLSET ARGON ES 1.2x10 NANO from Vector Optics weighs only 205 g, but inside it features a VOx infrared detector with resolution 256 × 192 px and sensitivity NETD 30 mK, allowing the device to detect even small temperature differences. This means better identification of people, wildlife or objects in the field. The device can detect targets up to 500 m. Control is handled via a 1.43" AMOLED touchscreen display, allowing quick switching of color palettes or starting photo and video recording. The device also features 16 GB built in memory and dual Wi Fi for transferring data to a mobile application. Thanks to IP67 water resistance and up to 6 hours of operation, the device is suitable for hunting, tactical observation, airsoft, outdoor activities or search operations. The package also includes the RIS VEOTM-01 mount, which allows installation of the thermal device directly on a RIS rail of a weapon.

Key features of the Vector Optics OWLSET ARGON ES 1.2x10 NANO thermal device

Lightweight and compact design

The thermal device weighs only 205 g and measures just 111 mm. This makes it easy to store in a pocket, pouch or gear and keep it ready for use at all times.

VOx infrared detector

Sensor with resolution 256 × 192 px and pixel size 12 μm provides a sharp image and stable detection of heat sources even in demanding conditions.

AMOLED touchscreen display

Integrated 1.43" AMOLED display with resolution 466 × 466 px allows intuitive control of functions and comfortable image viewing.

Built in memory and recording

Internal memory 16 GB allows storing photos, videos and audio recordings directly in the device without an external card.

Image color palettes

Several display modes are available such as White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot or Sepia to better highlight details in different environments.

Wi Fi connectivity

Dual Wi Fi 2.4G and 5G allows stable connection with a mobile app and quick transfer of photos or videos to your phone.

Durable construction and battery life

The device meets the IP67 standard, meaning it is resistant to rain and dust. The built in battery provides up to 6 hours of operation and supports fast charging 20 W.

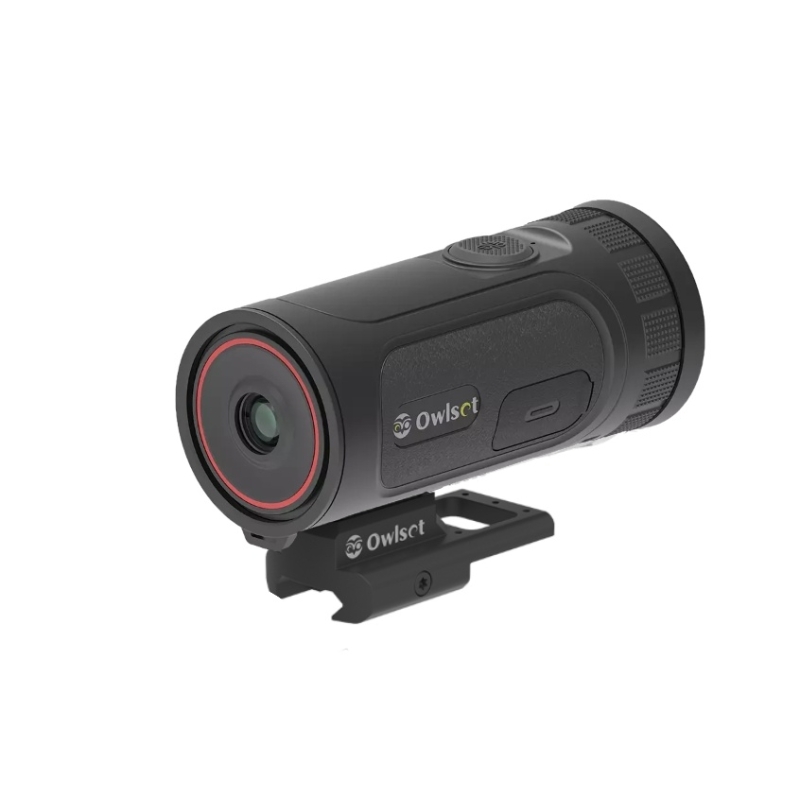

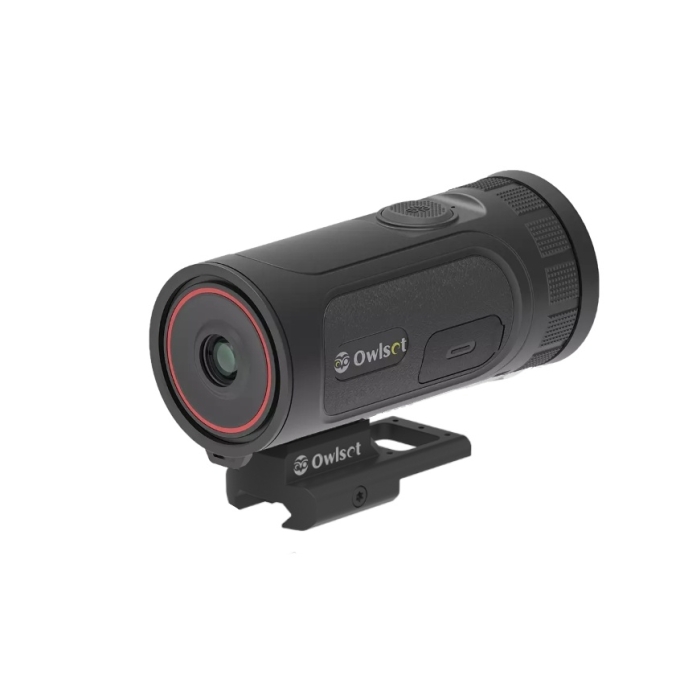

OWLSET ARGON ES 1.2x10 NANO with VEOTM-01 RIS mount

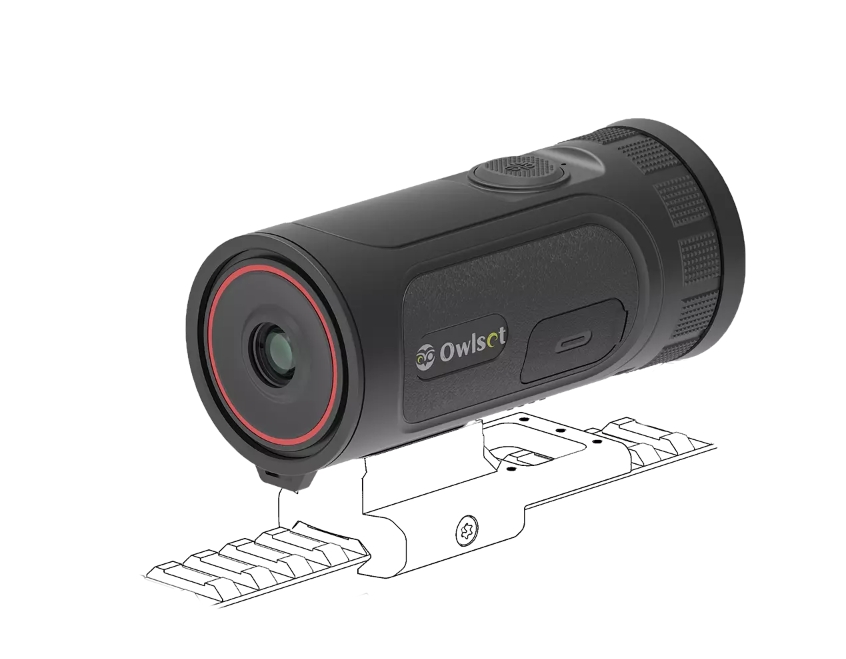

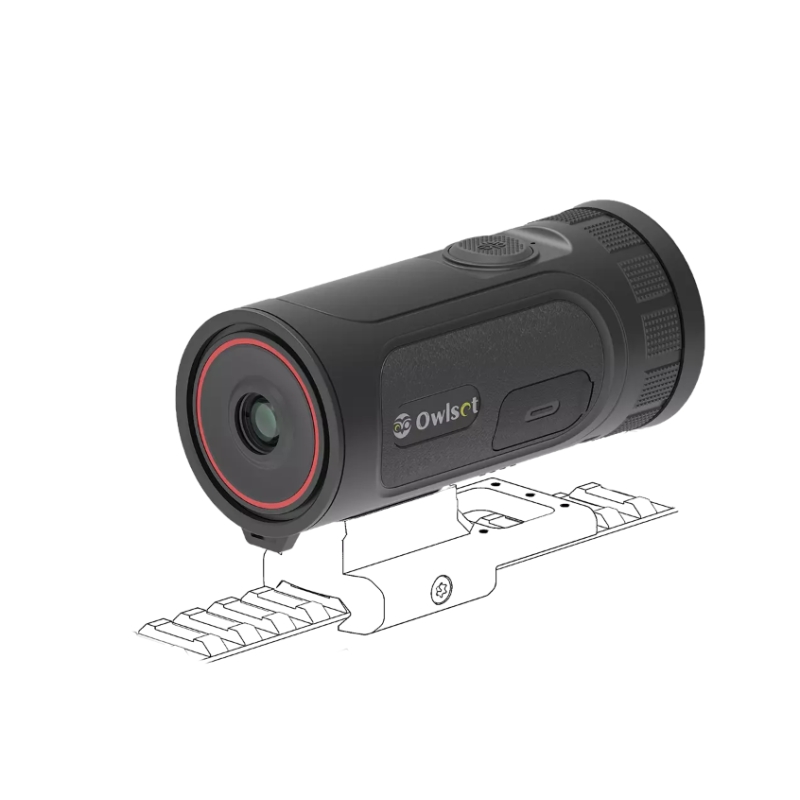

Example of the thermal monocular installed on the VEOTM-01 RIS mount

Technical specifications

• Magnification: 1.2 to 4.8×
• Objective diameter: 10 mm F1.0
• Sensor resolution: 256 × 192 px 12 μm
• Detector type: VOx Vanadium Oxide
• NETD: 30 mK
• Field of view: 13.1° × 13.1°
• Display: AMOLED 1.43" 466 × 466 px, touchscreen
• Diopter adjustment: −5 to +5
• Detection distance: 500 m
• Color palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
• Memory: Built in 16 GB
• Wi Fi: 2.4G and 5G
• Battery: Built in, 6 h runtime, fast charging 20 W
• Water resistance: IP67
• Dimensions: 111 × 49 mm
• Weight: 205 g
• Operating temperature: −20 to +50 °C

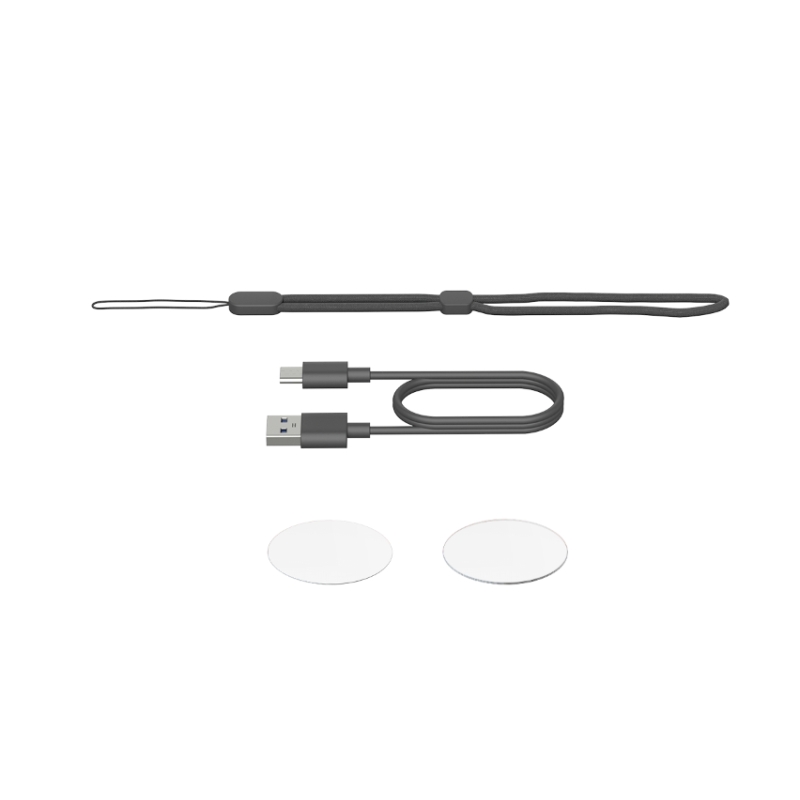

What’s included in the package?

• OWLSET ARGON ES 1.2x10 NANO thermal monocular
• VEOTM-01 RIS mount
• Wrist strap
• USB C cable
• 2× screen protector
• User manual

Notice, disabling Clean Mode

The device is factory set to Clean Mode, which limits certain functions. To activate full functionality, this mode must be disabled.

1. Turn on the device.
2. While the device is on, quickly press the power button 8 times in succession.
3. A message confirming that Clean Mode has been disabled will appear on the display.
4. The device will then switch to normal operating mode.

The button presses must be quick and continuous, otherwise the operation will not start. After disabling Clean Mode no further setup is required.
