RetroArms Shim Set INNOX 0,05mm (25 ks) – Ø 4 mm | ANAREUS View larger

RetroArms Shim Set INNOX 0,05mm (25 ks) – Ø 4 mm

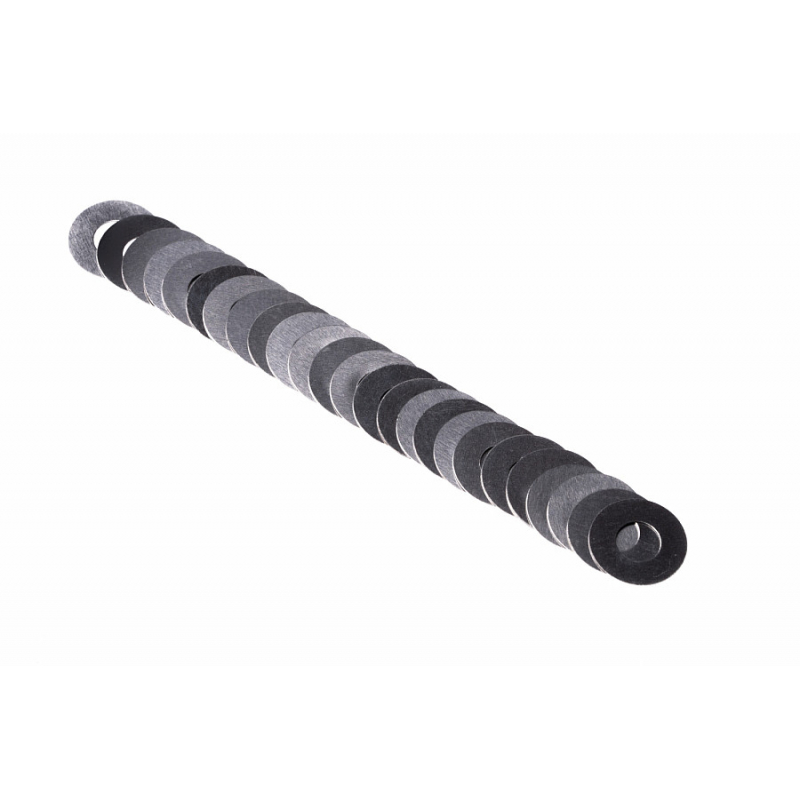

RetroArms INOX 0.05 mm shims – Ø4 mm are precision service shims for adjusting gear clearance in an AEG gearbox. The stainless steel design with a thickness of just 0.05 mm allows very fine shimming, while the Ø4 mm hole is intended for gears with a 4mm shaft, such as RetroArms PandoRA. The package contains 25 shims.

Another product variants

  • Silver
    Out stock

5,07 € tax incl.

Anareus 25 let

For more than 25 years, we know what you like about airsoft.

Availability: In Stock at store

> 10 Items

7224

: RetroArms

Accessories

RetroArms INOX 0.05 mm Shims for 4mm Gear Shafts

This expert product description was prepared by the ANAREUS.cz expert team. All rights to this unique content are tied to the anareus.cz domain.RetroArms INOX shims are designed for precise shimming of gears in an AEG gearbox. Correct placement of the shims allows you to adjust the axial play of individual gears and set their relative position so that they can rotate freely without excessive play. This version is only 0.05 mm thick, making it particularly suitable for very fine final adjustment where a conventional thicker shim would already make the fit too tight. The shims are made of stainless steel (INOX) and their Ø4 mm hole is intended for gears with a 4mm shaft, such as reinforced RetroArms PandoRA gears. This is therefore not a version for standard AEG gears with 3mm shafts. The package contains 25 shims, making it suitable both for gearbox builds and as a supply for regular servicing and precise shimming of multiple builds.

Key Features

Only 0.05 mm Thick

The very thin design allows fine final adjustment of gear clearance when a thicker shim would already be too thick for correct setup.

For 4mm Gear Shafts

The 4 mm diameter hole is intended for gears with a 4mm shaft, such as reinforced RetroArms PandoRA gears.

INOX Stainless Steel

The shims are made of stainless steel, which is suitable for long-term use when building and regularly servicing a gearbox.

Precise Gearbox Shimming

A correctly selected combination of shims helps adjust axial play and set the position of the gears when shimming an AEG gearbox.

25 Pieces for Servicing and Builds

The package contains 25 shims of the same size, providing a sufficient supply for precise adjustment and subsequent servicing of compatible builds.

Technical Specifications

  • Type: Gear shims
  • Material: Stainless steel (INOX)
  • Thickness: 0.05 mm
  • Inner Diameter: 4 mm
  • Compatibility: Gears with 4mm shafts
  • Example of Compatible Gears: RetroArms PandoRA with 4mm shaft

Package Contents

  • 25× RetroArms INOX 0.05 mm shim – Ø4 mm

Frequently Asked Questions (FAQ)

What Are the 0.05 mm Shims Used For?

They are primarily intended for very fine final shimming of gears. They allow clearance to be adjusted in smaller increments than thicker shims, making it possible to fine-tune the gear fit in the gearbox more precisely.

Are These Shims Suitable for Standard AEG Gears?

Only if they have a 4 mm diameter shaft. The shims have a Ø4 mm hole and are intended, for example, for corresponding reinforced RetroArms PandoRA gears. For standard gears with 3mm shafts, shims with a correspondingly smaller hole are required.

Why Is Correct Gear Shimming Important?

Shimming adjusts the axial play and relative position of the gears. The goal is to allow the gears to rotate freely while preventing unnecessary lateral play.

Can 0.05 mm Shims Be Combined With Other Thicknesses?

Yes. When shimming, different thicknesses of compatible shims can be combined according to the requirements of the specific gearbox. The 0.05 mm version is particularly suitable for fine-tuning the final clearance.

Variants0,05 mm (Ø 4 mm)
ColorSilver
Body/receiver materialMetal
Bearings (mm)8 (mm)
Počet kusů v balení25
