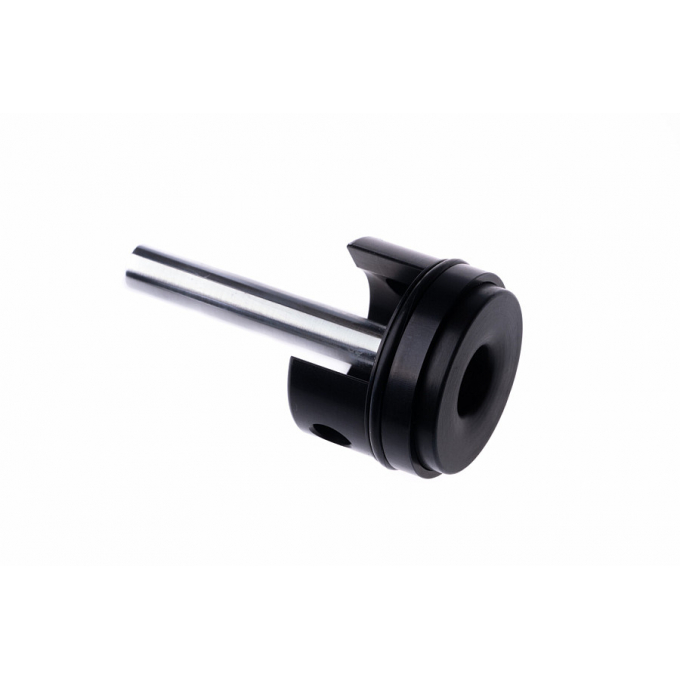

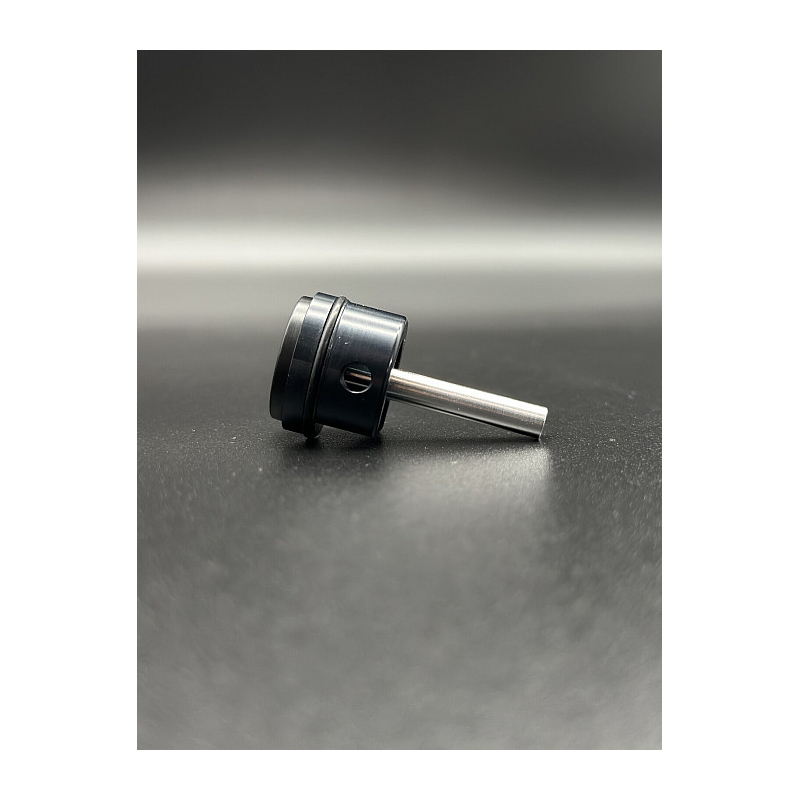

RetroArms CNC Aluminum Cylinder Head – Type C (Long)
RetroArms CNC Universal Cylinder Head Type C Long is a precisely machined cylinder head made of aircraft-grade EN AW 7075 aluminum alloy designed for V2 and V3 gearboxes. The Type C version has a nozzle tip length of 35.8 mm and is designed for nozzles with a length of 36 mm and more. The durable cast polyurethane impact section is suitable for use with strong springs up to M210.
Another product variants
BlackOut stock
BlackOn stock
BlackOn stock
For more than 25 years, we know what you like about airsoft.
Accessories
16,49 € In StockRetroArms CNC Dural Piston Head – Silver6888
RetroArms CNC Dural Piston Head is a precisely manufactured piston head made of strong aluminum (duralumin), designed for AEG airsoft guns. The construction with 10 pressure holes ensures proper pressure of the sealing O-ring against the cylinder wall. The integrated thrust bearing reduces spring twisting, while the duralumin construction is suitable for...
16,49 €In Stock
3,34 € 6,13 € In Stock-46%RetroArms CNC Duralumin AEG Nozzle6715
RetroArms CNC upgrade air nozzle is designed for AEG airsoft guns with a standard cylinder head. It is made by precise CNC turning from free-machining aluminium alloy EN AW 2007, providing low weight and a solid construction. The nozzles are available in standard lengths from 19.6 mm to 35.5 mm. The sealing O-ring must be lubricated before use.
3,34 € 6,13 €In StockReduced price!
20,72 € In StockRetroArms CNC Stainless Cylinder – Type D (370–650mm)7166
RetroArms CNC stainless steel cylinder – Type D is an upgrade part for AEG airsoft guns with an inner barrel length of 370–650 mm. 1.4541 stainless steel, CNC turning and thermochemical treatment with a surface hardness of 630 HBA provide a durable working surface, while the blackened finish helps protect the cylinder against corrosion.
20,72 €In Stock
6,34 € In Stock4UANTUM High Viscosity Airtight Sealant SEAL - Transparent4UAD006
4UANTUM SEAL Silicone Grease for Sealing by 4UAD in a transparent finish. High-viscosity sealing grease. Ideal for sealing repairs and preventing leaks from damaged O-rings. Suitable for electric AEGs, manual, GBB, CO2, and HPA gas guns. Content: 15 ml. Easy application with a pen applicator.
6,34 €In Stock
RetroArms CNC Universal Cylinder Head Type C Long
The cylinder head is manufactured using precise CNC turning and milling from aircraft-grade EN AW 7075 aluminum alloy. The sealing O-ring ensures proper sealing between the cylinder head and cylinder. The impact section is made of cast polyurethane, which according to the manufacturer has several times the service life of vulcanized natural rubber. The Type C version has a nozzle tip length of 35.8 mm and is designed for nozzles from 36 mm.
Key Features
CNC Machining from EN AW 7075 Aluminum Alloy
The cylinder head is made of aircraft-grade EN AW 7075 aluminum alloy using precise CNC turning and milling.
Type C Long Version
The nozzle tip has a length of 35.8 mm and is designed for use with nozzles with a length of 36 mm and more.
Durable Impact Section
The impact section is made of cast polyurethane, which according to the manufacturer has several times the service life of vulcanized natural rubber.
Precise Sealing
The sealing O-ring ensures proper sealing between the cylinder head and cylinder.
Compatible with Standard and Silent Piston Heads
The cylinder head is suitable for standard flat and silent piston heads. It is not designed for NBU piston heads.
Compatibility
- Cast zinc V2 / V3 gearboxes
- CNC V2 / V3 gearboxes
- Best compatibility is achieved with RetroArms CNC gearboxes
Technical Specifications
- Material: Aircraft-grade EN AW 7075 aluminum alloy
- Manufacturing: CNC turning and milling
- Version: C (long)
- Nozzle Tip Length: 35.8 mm
- Nozzle Compatibility: 36 mm and more
- Impact Section: Cast polyurethane
- Sealing: O-ring
- Piston Head Compatibility: Standard and silent (not NBU)
- Maximum Spring: M210
Package Contents
- 1× CNC Universal Cylinder Head (Type C, Long)
| Variants | C (long) |
| Color | Black |
| Body/receiver material | Metal |
